Lifecube™ SA Single-Use Reduction Transfer Sets with TPE Tubing and TC Connectors, 1 set/pk

In stock
Part No. SAL04051
$48.00 USD
Port1+Port2
Tubing Material
Length
Loading locations...
*Ships within 3 Weeks
*Customers are responsible for any import duties or taxes
*Read our Shipping Policy and Refund Policy
*Not for medical use

Cobetter Lifecube™ single-use tubing assemblies are used for interconnection of different unit operations in a wide range of applications. With our tubing assemblies, you can easily connect multiple containers, vessels and process lines in one system, minimizing the risk of cross-contamination, saving time and reducing costs.

C-Flex® is the original patented thermoplastic elastomer tubing specifically designed to meet the critical demands of pharmaceutical and biopharmaceutical applications for fluid processing with excellent heat seal and sterile weld capabilities.

TC connectors work with clamps, caps and gaskets, providing for quick and convenient connections.

Features

  • Common connectors and tubing assembly available
  • Double-layer packaging, sterilized by 25~45 kGy gamma irradiation
  • Non-sterile packaging, autoclavable
  • Flexible customized solutions

Applications

  • Fluid transfer between Single-use and stainless steel system
  • Fluid Transfer between different types of connectors
  • Upstream and downstream system switching
  • PUPSIT system (Pre-Use and Post-Sterilization Integrity Test)
  • Connect and transfer of Single-use products from different brands
  • Temporary feeding and filtration, etc

Regulatory Compliance

  • ISO 9001:2015 quality management system
  • ISO Class 4.8 / ISO 7 cleanroom production
  • 100% leak testing
  • ADCF raw materials, complies with FDA 21 CFR Part 177-182(Indirect food additives)
  • Meet the requirement of current USP <87> Class VI, Biological Reactivity Test, In Vitro
  • Meet the criteria of current USP <88> Class VI, Biological Reactivity Test, In Vivo
  • Aqueous extraction contains <0.25 EU/mL as determined by Limulus Amebocyte Lysate (LAL), USP <85>
  • Particulate matter in the product eluent meets the requirements in USP <788> for large volume parenterals
  • Verified gamma irradiation dose according to ISO® 11137
Connections Port 1 3/4" TC
Port 2 1-1/2" TC
Tubings Materials Lifemeta STF TPE,
C-Flex® 374 TPE
Length 50/100 cm
Size (ID x OD) 1/8" ID x 1/4" OD  to 1/4" ID x 7/16" OD,
1/8" ID x 1/4" OD to 3/8" ID x 5/8" OD,
1/4" ID x 7/16" OD to 3/8" ID x 5/8" OD,
1/4" ID x 7/16" OD to 1/2" ID x 3/4" OD,
3/8" ID x 5/8" OD to 1/2" ID x 3/4" OD
Sterility Delivery Condition Sterile
Sterilization Method Gamma irradiation at 25–45 kGy
Package Packaging Individually packaged in double PE bags
Pack Size 1 set/pk


  • Cobetter_Lifecube_SA_Single-Use_Assemblies_Catalog_250710 Download
Cobetter’s custom tubing assemblies are non-sterile, can customers sterilize it by themselves?

Yes, user can sterilize only the tubing assemblies and the connectors, excluding any bags.

When user sterilize the connectors and tubing, all ports should be opened, such as connector plugs and blind caps on clamps. After sterilization is completed, they can be connected and used.

Attention: You will need to add an additional cable tie to offset the leakage risk caused by the high-temperature deformation of the original cable tie after off-line sterilization.

Can Cobetter self-developed tubings be used for organic solvent solutions?

Both Pt-cured silicone tubing (STT, ST5P, ST8H) and TPE tubing (STF) are resistant to organic solvents. For certain solvent resistance, please refer to the chemical compatibility section in the validation guidelines.

Are the integrity testing of bags and tubings conducted together?

The pressure resistance of the bags and tubings is different. For the bag, we apply an air pressure of around 0.015 bar or 0.02 bar after clamping with bag clamps. After a certain period, we measure the pressure decay. The tubing and fittings can withstand pressure of up to approximately 2 bar, and we apply a pressure of 1.6 or 1.7 bar to measure the pressure decay.

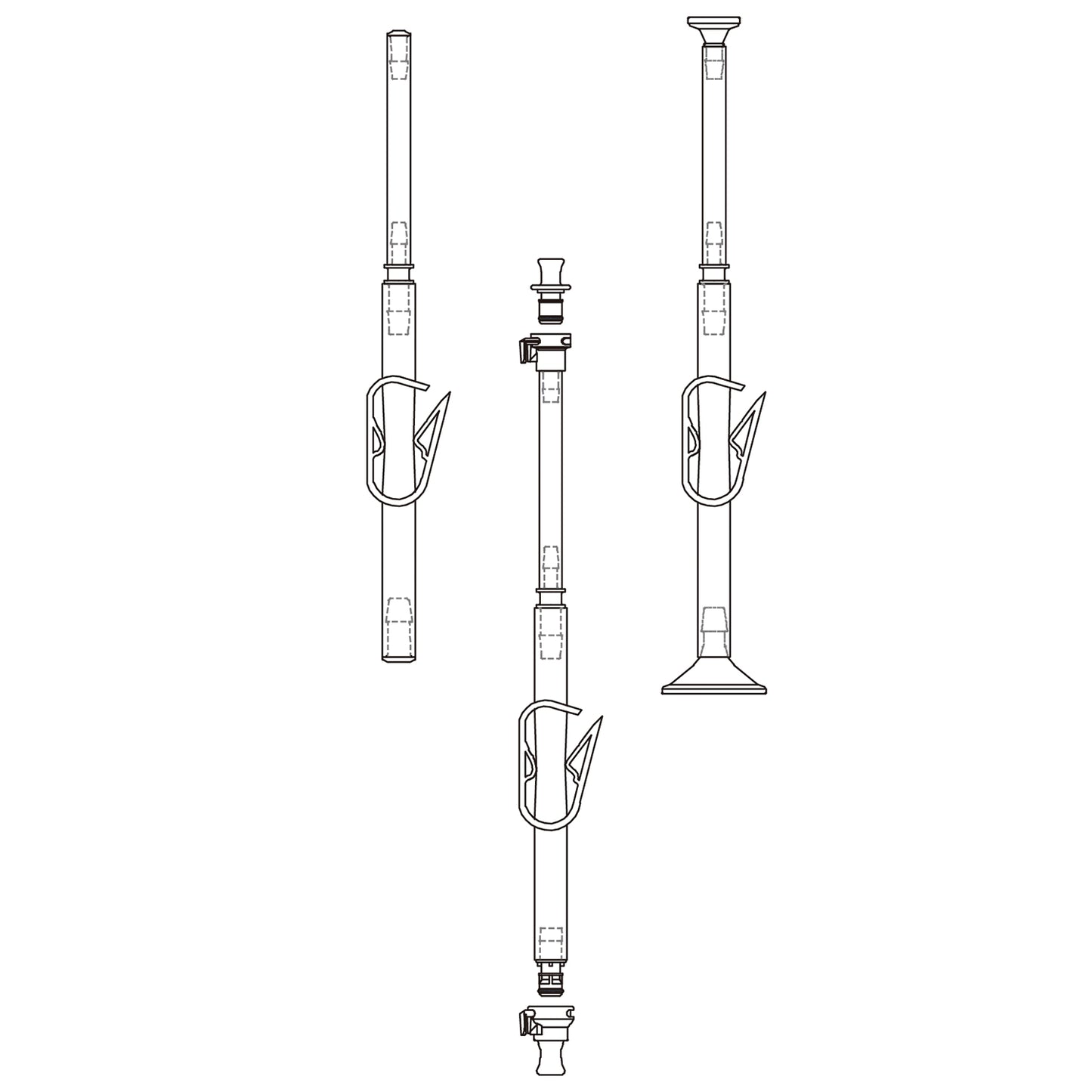

How do the drawings correspond to the product packaging?

Each product shown on a drawing represents the product within one package. If separate packaging or simultaneous use of multiple products is required, they can be split/integrated into a single drawing.
