Home » Aseptic Connections & Disconnections » Instruments » Lifemeta™ Tube Welder Pro

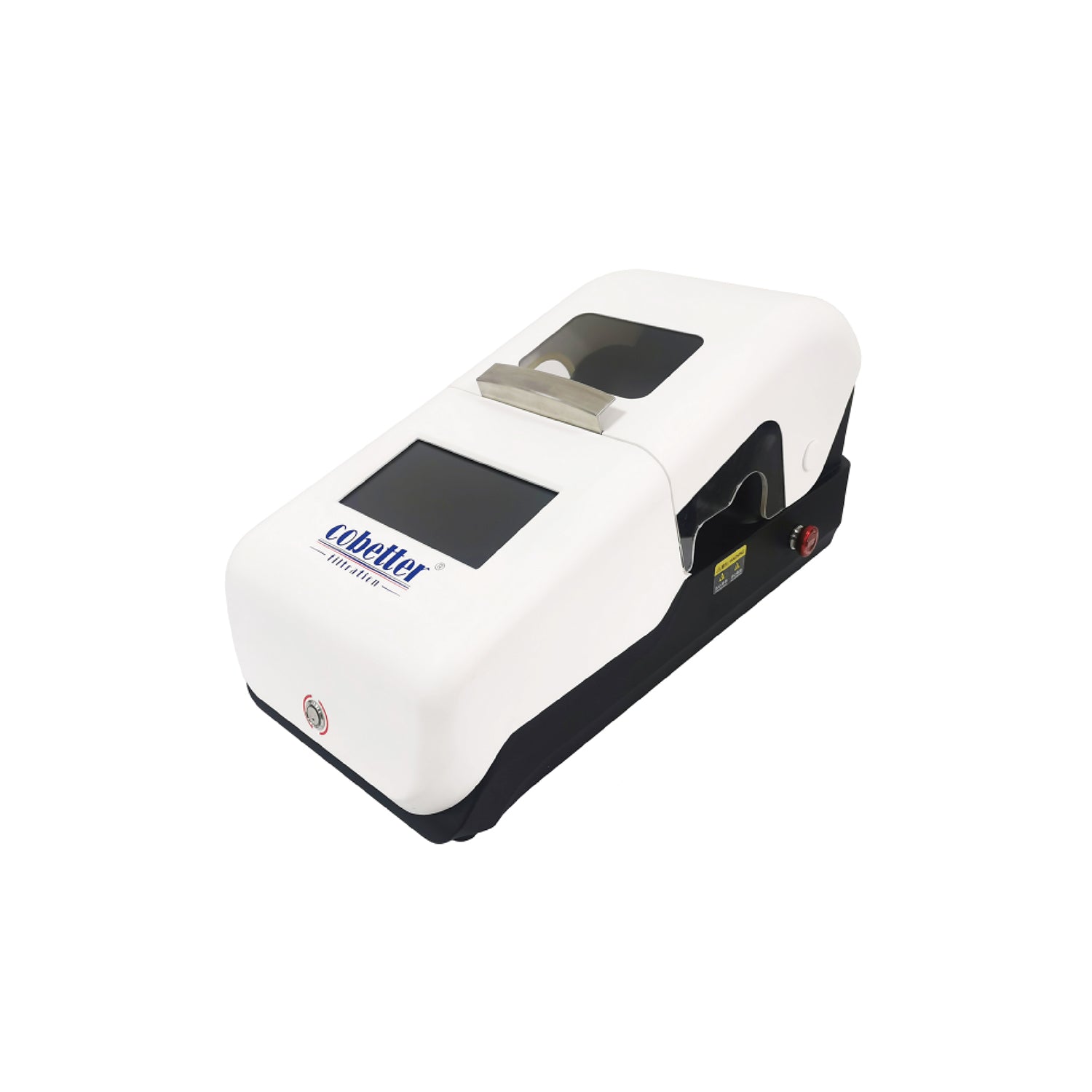

Lifemeta™ Tube Welder Pro

In stock
Part No. LMTWPA0
$42,143.00 USD
Loading locations...
*Ships out within 4 Weeks
*Customers are responsible for any import duties or taxes
*Read our Shipping Policy and Refund Policy
*Not for medical use

Instrument Parameters

Input Voltage/ Power 100-240 VAC 50/60 HZ 200 W
Screen 7 inch high-definition color touch screen
Dimension L×W×H：605×256×297 mm
Weight 18.5 kg
Applicable Environment

Operating Temperature 5°C~40°C

Humidity 20%-80%
Log Storage USB export



Compatible TPE Tubings

TPE Tubing Size

Lifemeta™ STF

C-Flex 374

AdvantaFlex

ID1/8"*OD1/4"

ID3/16"*OD5/16"

ID1/4"*OD3/8"

ID1/4"*OD7/16"

ID3/8"*OD5/8"

ID1/2"*OD3/4"

ID5/8"*OD7/8"

ID3/4"*OD1"

Features

Powerful Function

  • Lifemeta™ Tube Welder-Pro can weld either dry, wet or liquid-filled TPE tube in sterile and non-sterile environment while maintaining product sterility.
  • Efficient and quick, and the welding process can be completed in about 2 minutes.
  • Compatible with more specifications and brands of TPE tube, capable of welding tubes with an outer diameter of 1/4 inch to 1 inch

Intelligent Design

  • Intelligent judgment of blade installation direction, ensuring lower risk welding.
  • The chip of the tube holder can be intelligently recognized, effectively preventing erroneous operations.

Safe Operation

  • The whole process automatically senses the state of the protective cover to prevent high temperature accidental touch.
  • Emergency stop function can effectively terminate the wrong welding operations.

Audit Trail

  • Supports configuring 100 user information and 5 permission levels for more flexible device management.
  • Automatically store 100000 log data, supporting viewing and exporting

Product Services

  • Support the drafting and validation of 3Q.
  • Standard temperature calibration function, equipped with temperature calibration report.

Application

  • Aseptically weld TPE tubes of single-use sampling bags
  • Aseptically weld TPE tubes of single-use storage bags

Performance Verification

Lifemeta™ Tube Welder-Pro has completed the following verification and has complete validation guide.

  • Pressure resistance test
  • Tensile strength test
  • Water flow test
  • Bacterial challenge test
  • Extractable test
  • Bacterial endotoxins test

Q: What sizes of tubing is Cobetter LMTWPA0 sterile tube welder suitable for aseptic connections?

Cobetter LMTWPA0 sterile tube welder is suitable for aseptically connecting TPE tubing with OD 1/8”×1/4”, 3/16”×5/16”, 1/4”×3/8”, 1/4”×7/16”, 3/8”×5/8”, 1/2”×3/4”, 5/8”×7/8”, and 3/4”×1”.

Q: Which brands of tubing is Cobetter LMTWPA0 sterile tube welder compatible with? Can Cobetter provide methods and validation services for welding tubing of different brands?

The instrument supports standard connections for TPE tubing from the brands C-Flex 374, AdvantaFlex, and Lifemeta STF. If users involve tubing from other brands or require welding between different brands of tubing, Cobetter can provide customized development and validation services for these welding method.

Q: Can the blades of Cobetter LMTWPA0 sterile tube welder be reused?

The W-J-BJ-JGJ-006 blade provided with Cobetter LMTWPA0 sterile tube welder is recommended for single use. If users have a need for reuse, they may do so after independently validating the blade’s cleaning effectiveness. When reusing, please observe the blade surface carefully. If noticeable yellowing appears on the blade surface, users are advised to replace the blade as soon as possible to avoid affecting the welding.

Q: Does the blade of the LMTWPA0 sterile tube welder need to be installed in a specific orientation? If so, how can incorrect installation be avoided?

The W-J-BJ-JGJ-006 blade must be installed in Cobetter LMTWPA0 sterile tube welder in a specific orientation. If the blade is installed incorrectly, the LMTWPA0 sterile tube welder will alert the user to prevent any impact on the welding results.

Q: Can Cobetter LMTWPA0 sterile tube welder automatically recognize the tube holder? If so, when the automatic recognition for the tube holder malfunctions, are there alternative methods to weld tubing normally?

Cobetter LMTWPA0 sterile tube welder can automatically recognize the tube holder. If the tube holder recognition malfunctions, operators may use the manual identification function in place of automatic identification to ensure normal tube welding.

Q: Can Cobetter LMTWPA0 sterile tube welder achieve aseptic welding of tubing in a non-sterile environment?

Cobetter LMTWPA0 sterile tube welder is capable of performing aseptic welding of tubing in a non-sterile environment. In this regard, we can provide a validation guide document that includes relevant content on bacterial challenge validation.

Q: How should the LMTWPA0 Sterile Tube Welder be cleaned and maintained overall? Can it undergo VHP or other steam sterilization?

Currently, Cobetter LMTWPA0 Sterile Tube Welder only supports surface cleaning by wiping with disinfectant liquids such as alcohol, sporicides, or benzalkonium bromide. It does not support VHP or other steam-based sterilization methods, as these may damage the internal electronic components of the equipment.
  • Cobetter_Lifemeta_Tube_Welder-Pro_2025 Download

Product FAQ
