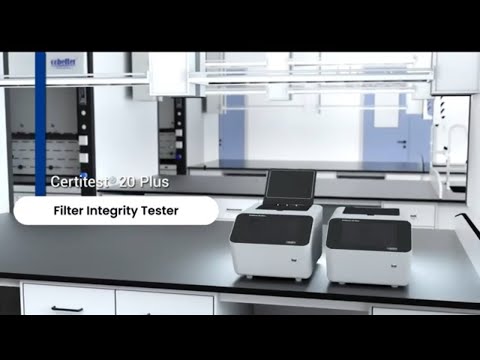

Certitest™ 20 Plus Integrity Tester
Couldn't load pickup availability
*Read our Shipping Policy and Refund Policy
Cobetter Certitest 20 Plus integrity tester adding a variety of product testing scenarios to meet more testing demands of usersThe core hardware is fully upgraded to provide guarantee to your testing and use. At the same time, the memory capacity isexpanded to 16 G, making your operation and data management more smoother, and more compatible with more languages aswell as authoritly management. in addition to the comprehensive upgrade on the hardware and testing functions, the upgraded-automation function can cover more scenarios, bringing you a more inteligent integrity testing experience.
Technical Parameters
| Dimensions | 495* 330* 265 mm (Length * Width * Height) |
| Weight | 13 kg |
| Operating system |
Windows 10
|
| Hard disk drive |
128 G
|
| Screen |
Type: Capacitance touch screen Size: 10.1 inch Screen resolation: 1280*800 |
|
Printer
|
Thermal/ Needle dot matrix
|
|
Power requirements
|
100-240 V/AC
|
|
Over-voltage protection
|
Yes
|
|
Operating environment
|
0-40℃；10-80% RHSingle-use bags
|
|
Max inlet pressure
|
3000-8000 mbar
|
Test Methods
Bubble Point (BP)
Combined diffusion and bubble point (DF+BP)
Diffusion (DF)
Water flow test (WFT)
Pressure decay (PD)
| Measuring Ranges |
BP : 100-7000 mbar DF: 0.1-1000 mL/min WFT: 0.005-100 mL/min PD: 1-7000 mbar |
| Measuring Accuracy |
BP : ±50 mbar DF: ±4% or 2 mL/min, whichever is greater WFT: ±5% or 0.02 mL/min, whichever is greater PD: ±5% or 3.5 mbar, whichever is greater |
| Resolution |
BP : 0.01 mL/min DF: 0.001 mL/min WFT: 1 mbar PD: 1 mbar |
| Applicable Products |
Membrane/ Filter/ Cassette/ Hollow fiber
|
| Export Data |
Export tool: U disk Export file format: PDF |
|
Data capacity
|
Test data result storage: > 20 000 tests Test program storage: > 1000 programs Active user storage: > 1000 users |
|
Audit trail
|
Compliance to 21 CFR Part 11 and GAMP standard
|
|
Communication ports
|
1× ethernet port (RJ45) 1× USB (standard) |
Components
| Certitest 20 Plus integrity tester |
CT20PA0 (Thermal printer) CT20PA1 (Needle dot matrix printer) |
| Inlet gas tube | Ø6 x 4 mm x 2 m with quick coupling (female/open end) |
| Outlet gas tube |
Ø6 x 4 mm x 2 m with quick couplings(female/female end)
|
| Quick clamp |
TC 50 mm to quick coupling(male end)
|
| External valve |
External valve with quick couplings (male/female end)
|
|
Case for transportation
|
PP trolley case
|
Features
Superior performance
- The RAM and core hardware of Certitest 20 Plus have been fully upgraded to ensure the stability of data and test accuracy. With the advance Windows 10 system, the interface is simple and the operation is smooth, bringing you a comfortable and stable experience.
Data integrity
- Certitest 20 Plus has a complete audit trail function, and the data can be signed with electronic signature, which complies with GMP and FDA 21 CFR part11 regulations.
- The device supports users to create their own permission groups and users (system administrator, administrator, supervisor, technician, QA, operator, etc. up to 20 levels), which can achieve more detailed access permission to ensure data integrity
More advanced automated network functions
- In addition to basic testing functions, Certitest 20 Plus integrates advanced automated network functions, which can realize automatic archiving of all data and databases; and synchronize users, settings and multi-device management through the network framework, saving time; the device also supports Modbus TCP and OPC-UA protocols, and compatible with other automation network control protocols , such as PLC (programmable logic controller), SCADA system (supervisory control and data acquisition system), HMI (human-machine interface), etc.
