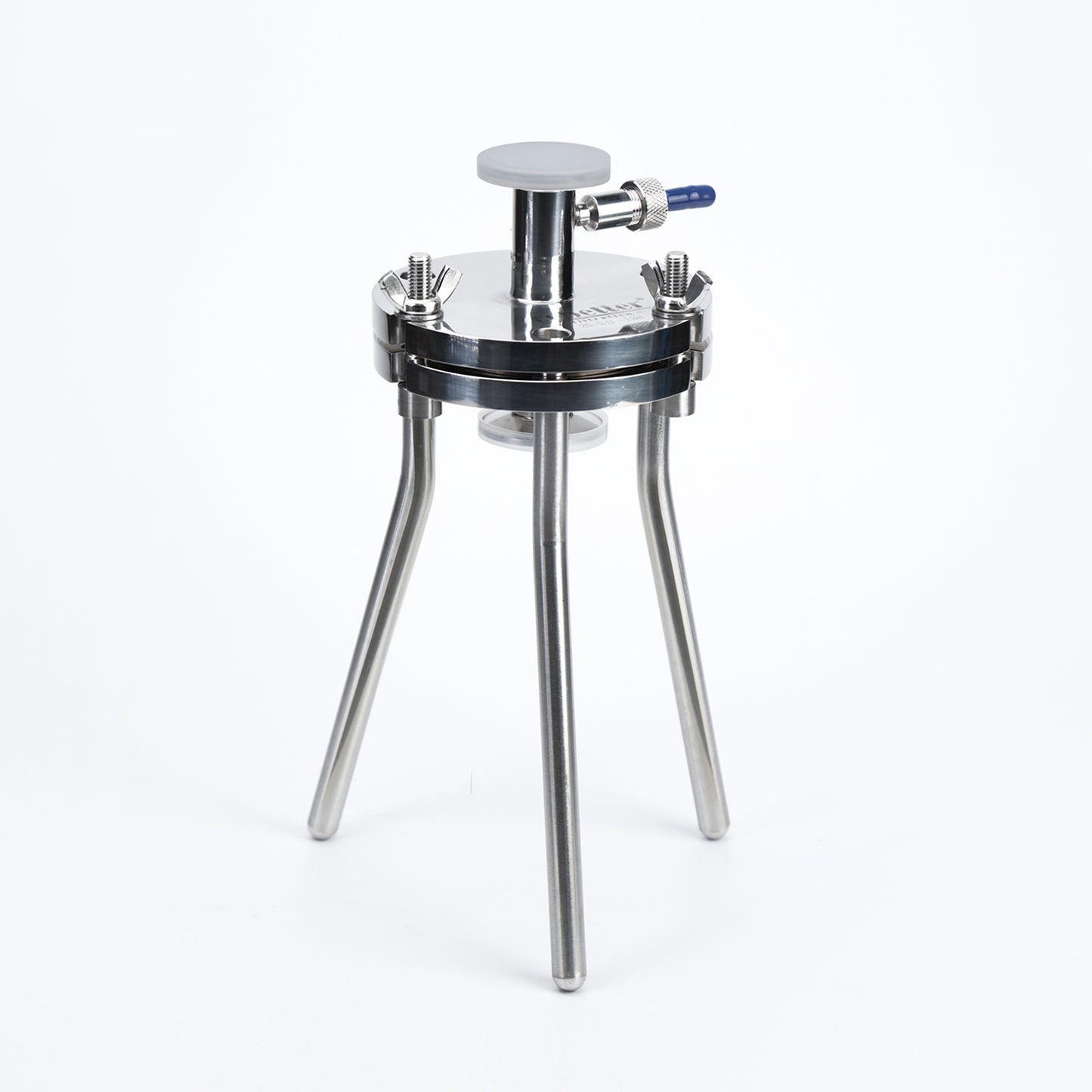

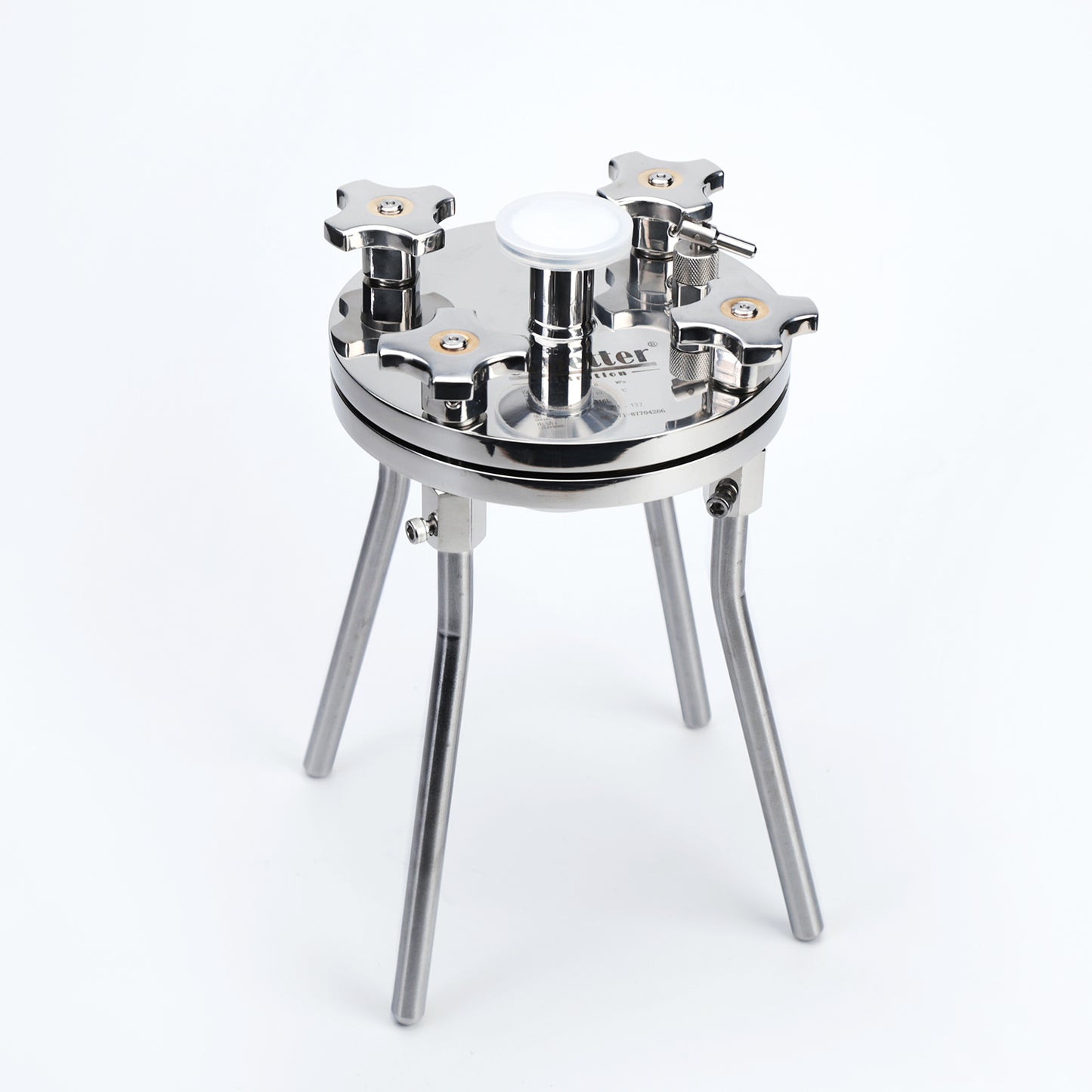

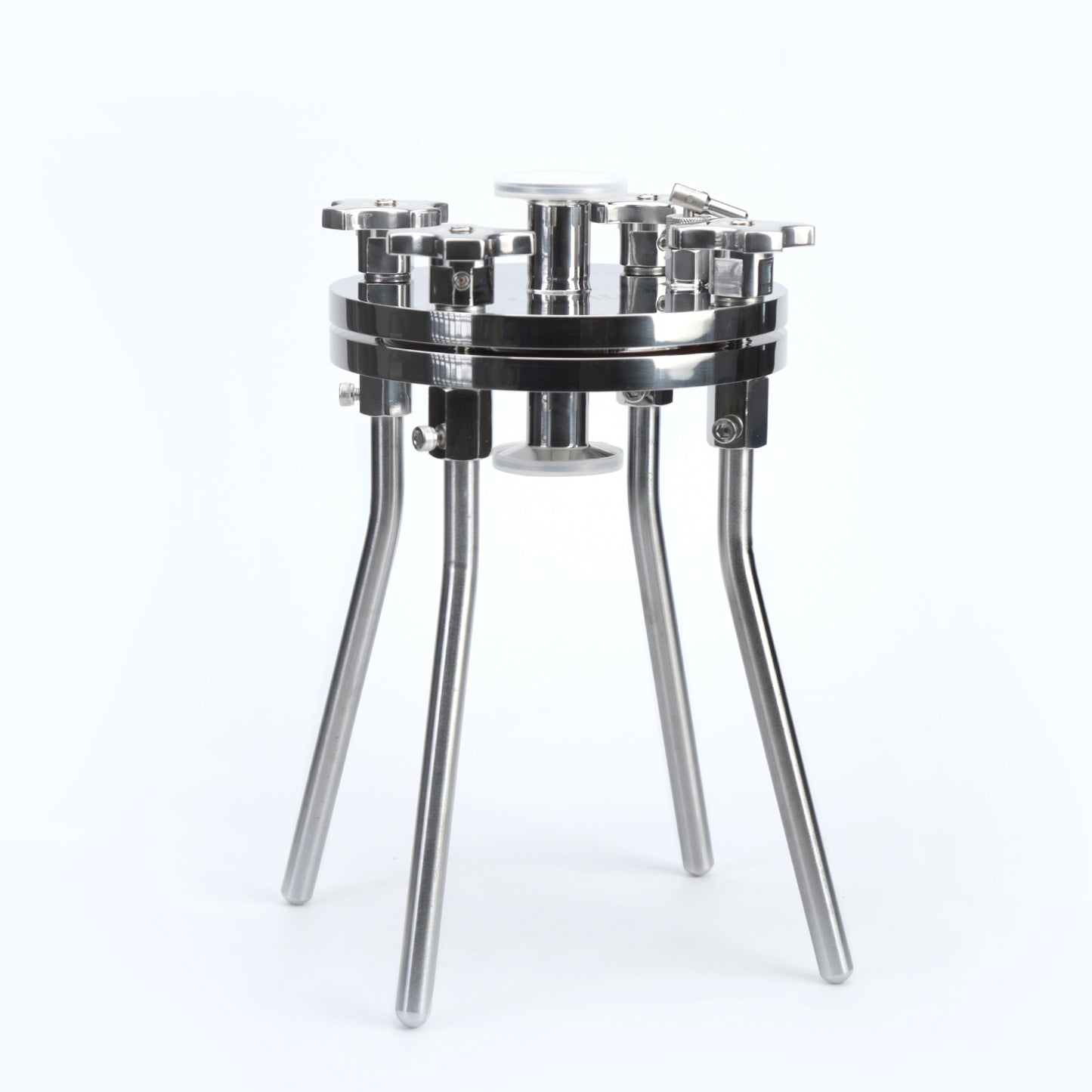

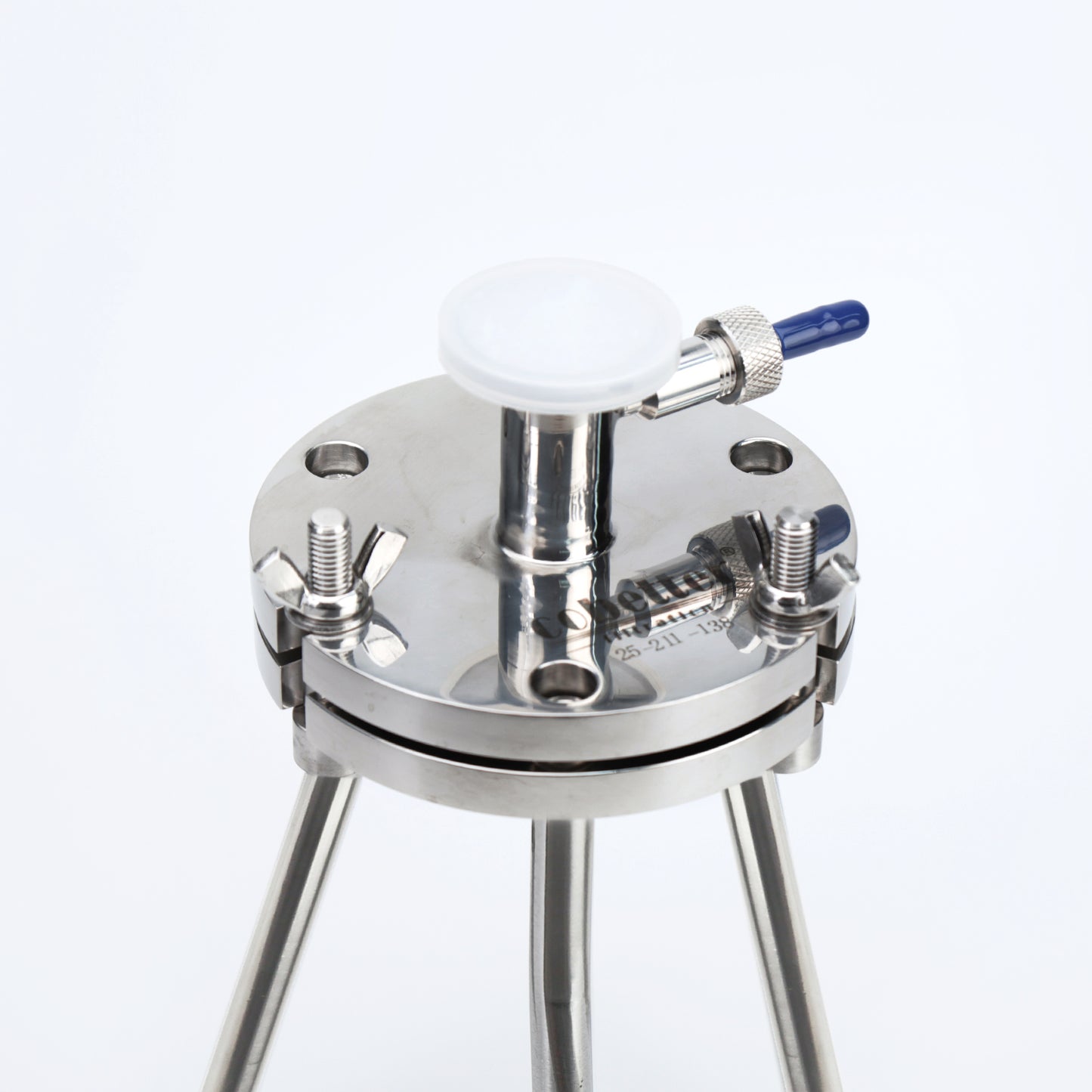

H-DMF Disc Filter Holder 47mm/90mm/142mm
Regular price
$320.00 USD
Couldn't load pickup availability
*International Shipping within 30-45 Business Days
*Customers are responsible for any import duties or taxes
*Read our
Shipping Policy
and
Refund Policy
*Not for medical use

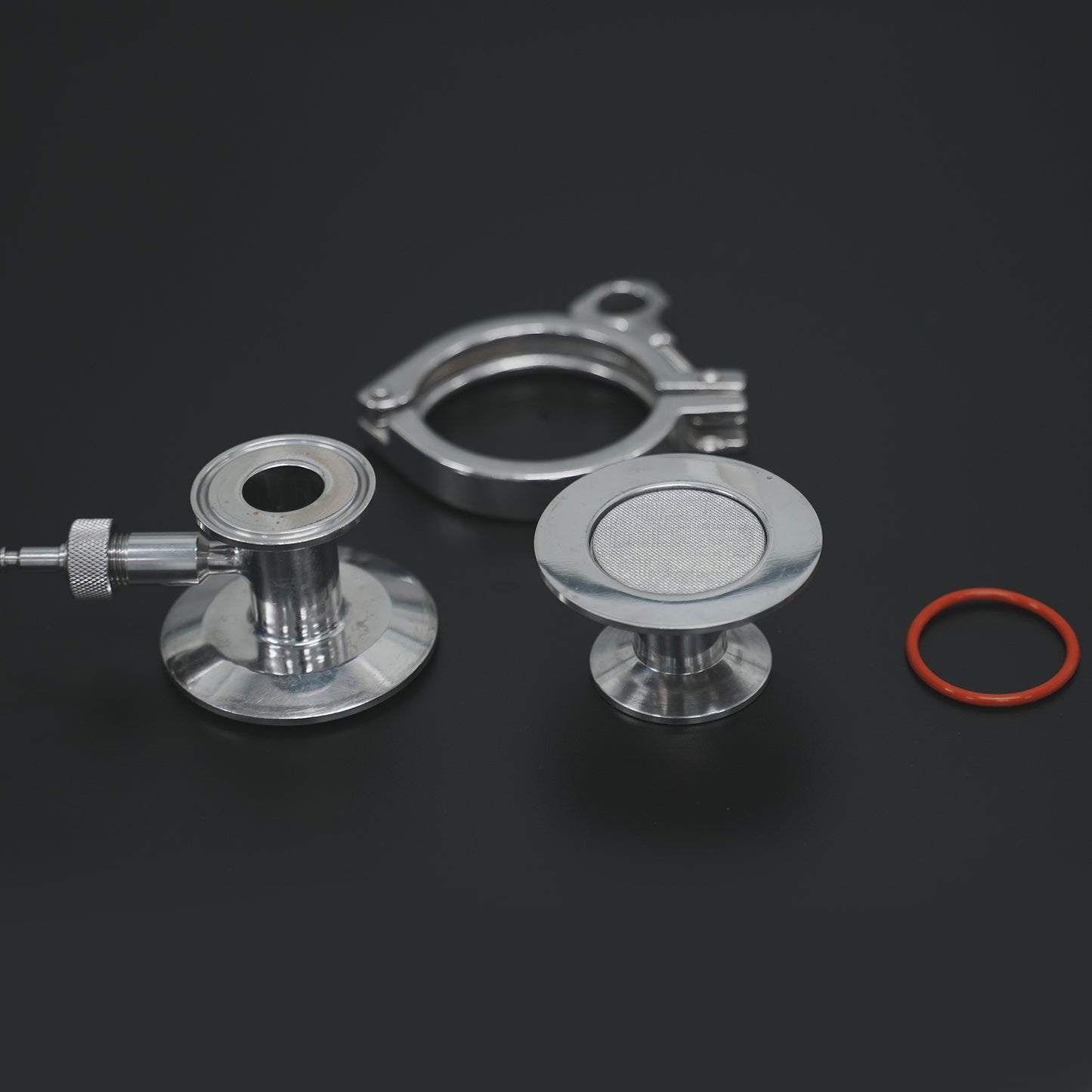

In-line filter holders used with 47mm, 90mm, or 142mm diameter membrane. Cobetter Vacuum Pressurized Disc Filter is made of welded stainless steel. The entire structure is designed to be disassembled and easy to clean. The inner wall polishing accuracy can reach up to 0.3um, which fully meets the requirements of hygiene and GMP.
Specification
| Materials | Body | 304/316L |
| Exhaust valve/Drain valve | 304/316L | |
| Clamp | >304/316L | |
| Feet | 304/316L | |
| Sealing ring/Gasket | Silicone, Fluorine, EPDM | |
| Physical Properties | Membrane Diameter | 47mm/90mm/142mm |
| Import & Export | Quick Fitting | |
| Exhaust Valve |
inner diameter of 4mm, connected to 8mm tubing |
|
| Maximum Operating Temp. | 130°C (266°F) | |
| Maximum Operating Pressure | 0.6 Mpa (6.0 bar) | |
| Sterility | Sterilization Option | SIP/Autoclavable |
| Package | Pack Size | 1/pk |
Applications
It is used for in-line impurity removal, degassing and cold sterilization of conventional solutions, including medicine liquid, beverages, alcohol, drinking water, etc.
