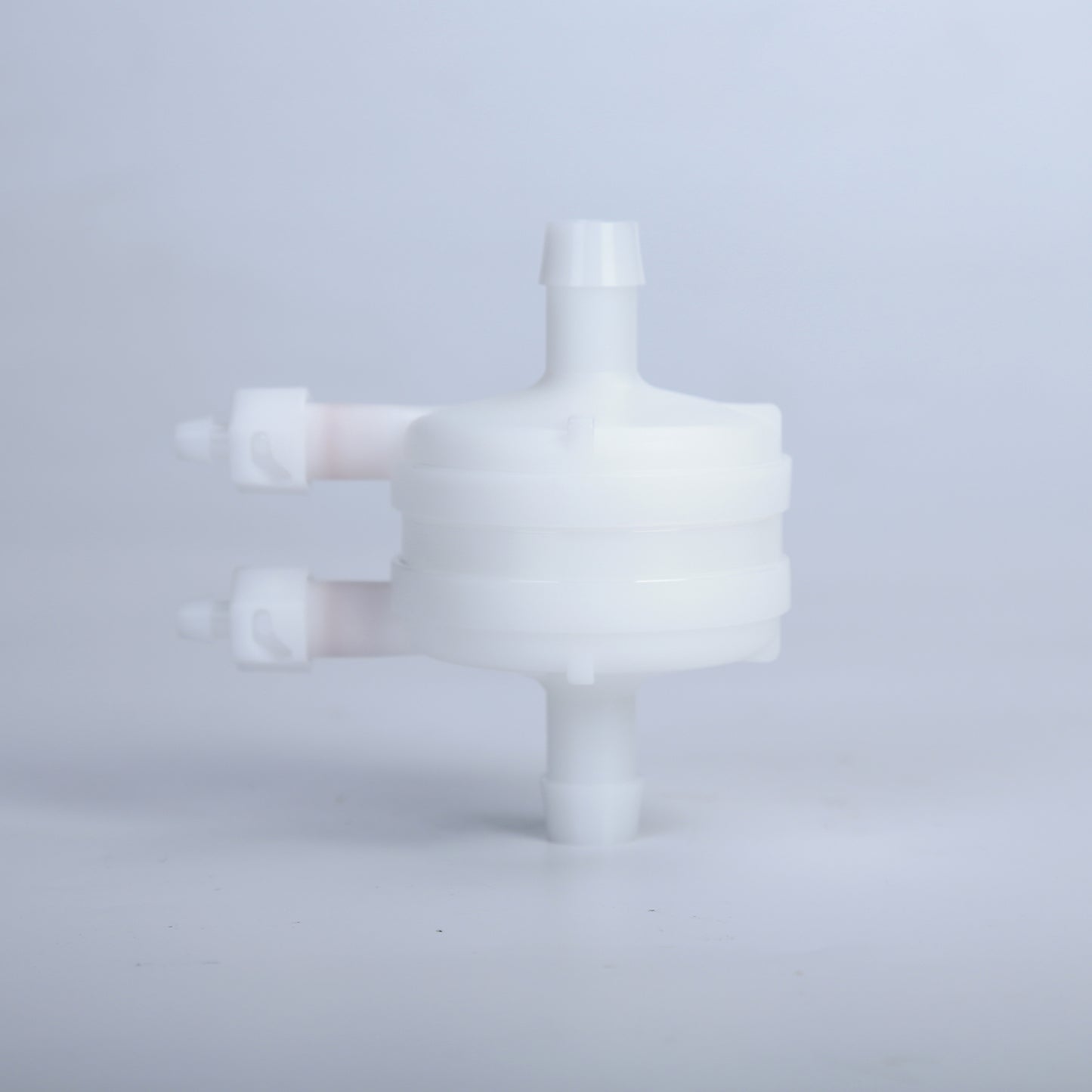

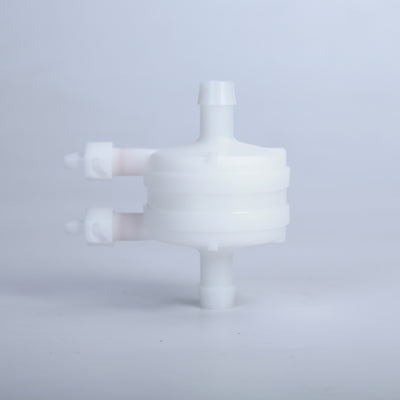

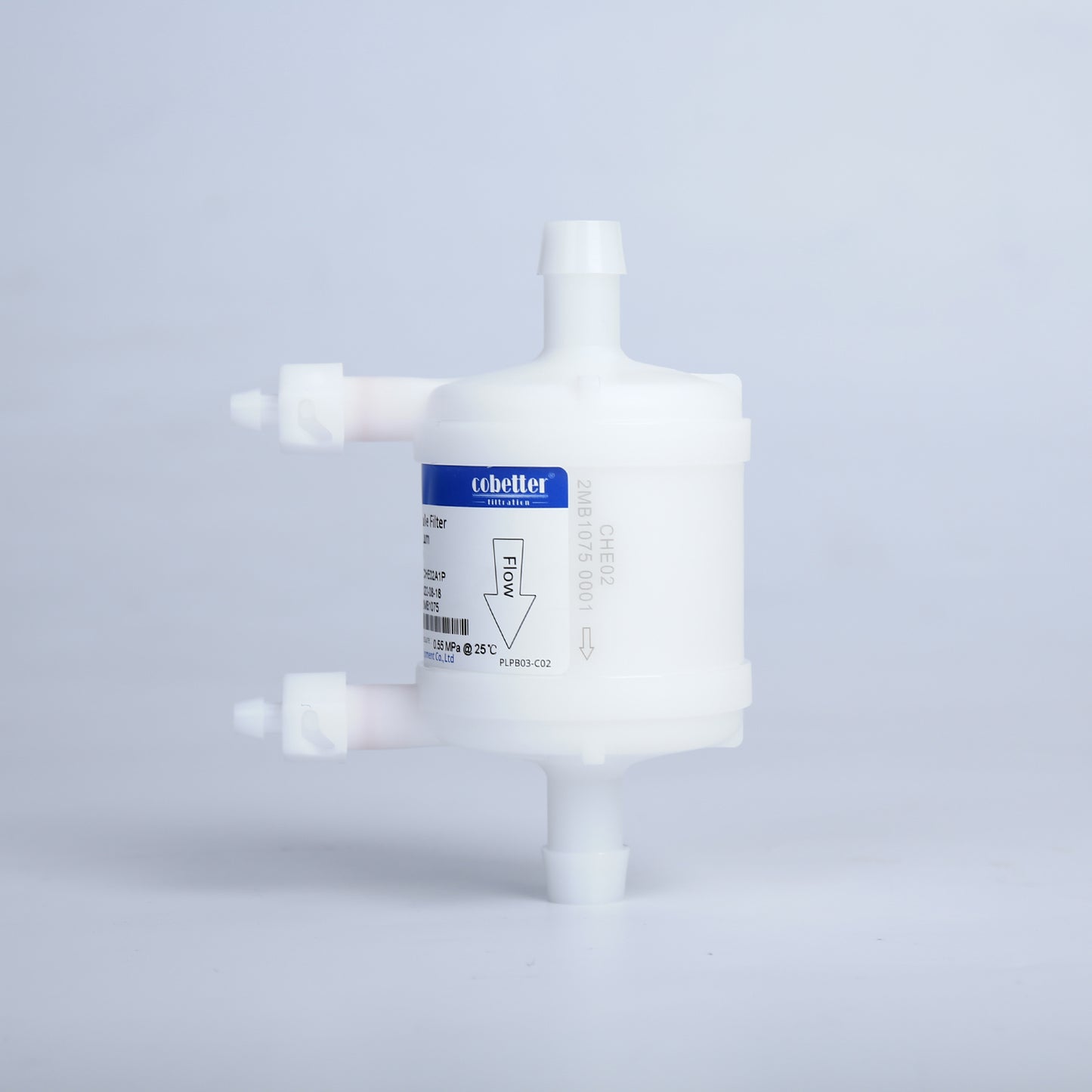

Excesal CHE Clarification Bricap C Series Capsule Filters

In stock
Part No. C03KKCHE02A1P
$88.00 USD
Capsule Format
Pore Size
Inlet/Outlet

Loading locations...
*Bulk Order? Request a Quote for Big Savings Now
*Ships within 10-15 Business Days
*Read our Shipping Policy and Refund Policy
*Not for medical use

Clarification Filter with High Retention Rate.

Specifications

Materials Membrane Polypropylene(PP)
Support Polypropylene(PP)
Core/Cage/End Cap Polypropylene(PP)
Capsule Housing Polypropylene(PP)
Capsule Vent O-rings Silicone
Filtration Area C03-500cm²
Operating Conditions Max. Operating Temperature 80°C
Max. Differential Pressure (Forward) 0.55 MPa @25°C
0.10 MPa @80°C
Max. Differential Pressure (Reverse) 0.21 MPa @25°C
Quality Standards Traceability Each filter with a unique serial number
QMS ISO 9001:2015
Sterility Delivery Condition Non-sterile
Sterilization Method Can be autoclaved 20 cycles for 30 minutes at 125°C (Can not be steam sterilized in-line)
Package Pack Size 1/pk
Packaging Double PE bag

*Note: Cobetter also provides filters with different sterilization methods:

Pre-sterilized filters by autoclaved for 30 minutes at 121°C (Packed in sterile breathable bags).

Features

  • Inner layer uses nanofibers for very high retention rate
  • Two-layer structure with increasing precision
  • High dirt-holding capacity and long service time

Applications

  • Fermentation broth
  • Pre-filtration blood products/serums
  • Pre-filtration of colloids/viscous liquids

Regulatory Compliance

  • Effluent meets the USP<788> requirement of particulate matter in large volume injection.
  • Component materials meet the criteria for a “Non-fiber-releasing filter”as defined in 21 CFR 210.3(b)(6).
  • Retention of 10⁷ cfu/cm² Brevundimonas diminuta(ATCC 19146) according to ASTM F838.
  • Aqueous extraction from a cartridge contains less than 0.25EU/ml as determined by Limulus Amebocyte Lysate (LAL), meeting requirements of USP<85>.
  • Components meet the requirement of USP <87> In Vitro Biological Reactivity Test.
  • Components meet the criteria of the USP <88> Biological Reactivity Test for Class V-121 °C plastics.
  • Components meet the FDA indirect Food Additive requirements cited in 21 CFR177-182.
  • Based on the current information from our suppliers, all components used in the manufacture of this product are animal-free.


*Contact us for more specification details.
