Aegivast™ ACE V37 0.2μm Hydrophobic PTFE Vent Filter Disc for Sterile Air Filtration, Max. Operation Pressure 0.24MPa, Autoclavable, 10/PK

In stock
Part No. V37EEACEBA1P
$58.00 USD
Filter type
Inlet/Outlet
Filtration Area
Loading locations...
*Ships within 5-7 Business Days
*Customers are responsible for any import duties or taxes
*Read our Shipping Policy and Refund Policy
*Not for medical use

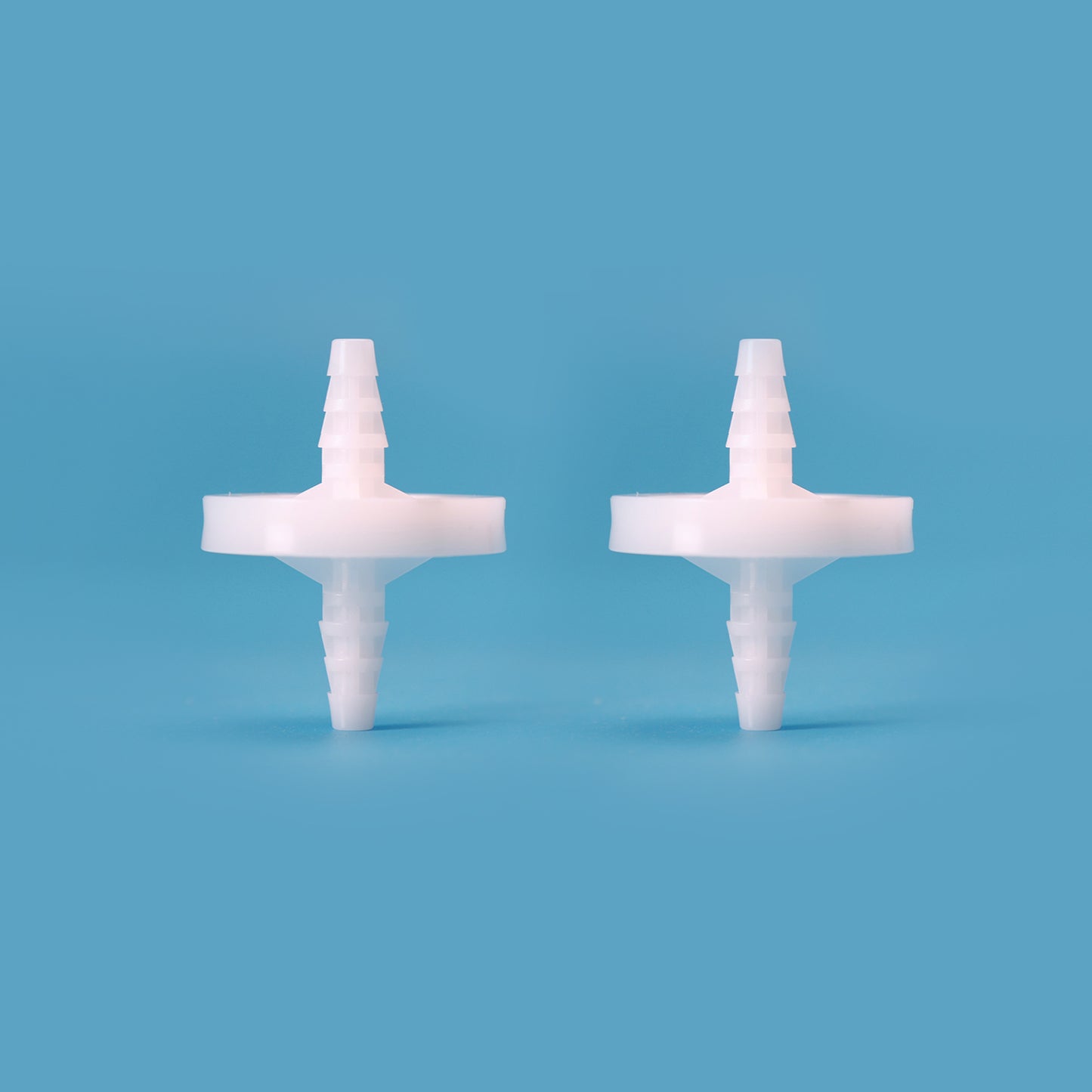

Cobetter Aegivast™ Vent Filter is a sterilizing-grade gas filter with high retention specifically developed for biopharmaceutical applications, available in both syringe and disc filters. The ACEB vent filter is made of a 0.2μm hydrophobic PTFE membrane composite with a polyester support layer and housed in a high-purity polypropylene casing. With a complete range of product specifications, it is highly suitable for sterile venting of small containers, bioreactors, and tubings.

Features

  • Natural hydrophobic PTFE membrane
  • Low pressure drop
  • Reliable bacteria and fine particle retention capability
  • Unique product serial number tracking system
  • Can be sterilized by gamma irradiation or autoclaved

Applications

  • Vent filter for fermenters, storage tanks
  • Sterilization filtration of compressed air, O2, N2
  • Venting filtration for single-use systems

Regulatory Compliance

  • Particulate matter in injections meet the requirements in USP <788> for large volume parenterals
  • Meet the criteria for a “non-fiber releasing” filter as defined in 21 CFR 210.3 (b) (6)
  • Fully validated as sterilizing grade filters according to ASTM F-838 guidelines, retaining a minimum of 1 x 10⁷ CFU/cm² Brevundimonas diminuta (ATCC™ No. 19146)
  • Endotoxin limit of WFI System< 0.25 EU/mL with the Limulus Amebocyte Lysate (LAL), USP <85>
  • Meet the criteria of USP <88> Class VI, Biological Reactivity Test, In Vivo
  • Complies with FDA 21 CFR Part 177-182 (Indirect food additives)
  • All component materials do not contain animal-derived components
Material Housing
 PP
Membrane Hydrophobic PTFE
Pore Size 0.2 μm
Connections

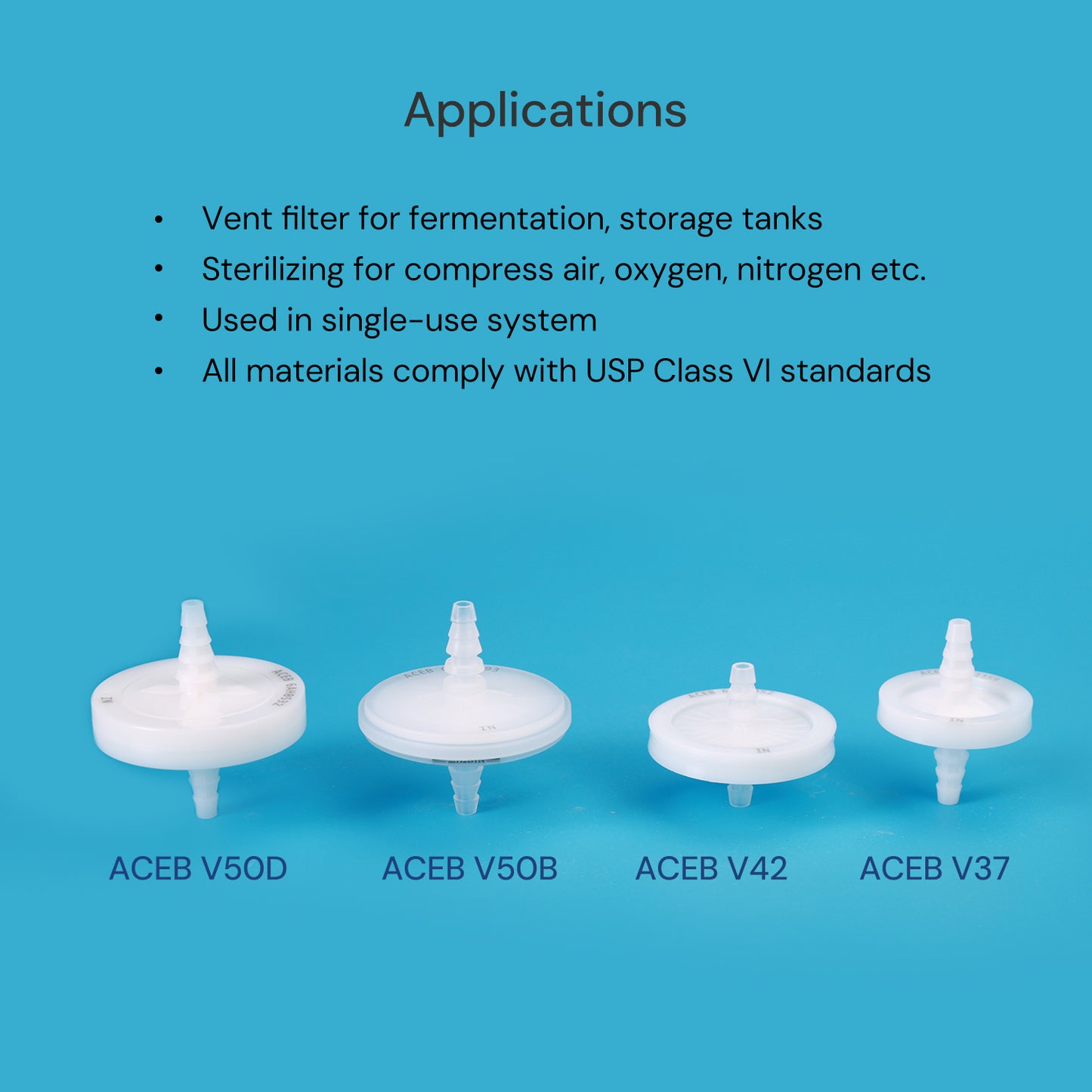

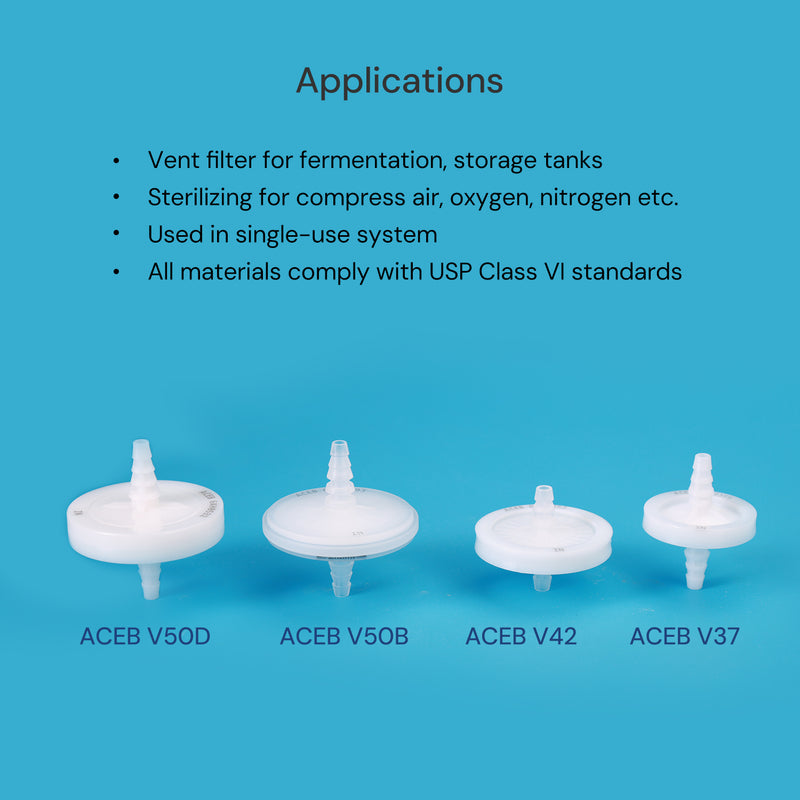

V37 V42 V50B V50D
Inlet
1/4"-3/8" Stepped HB 1/4"-3/8" Stepped HB 1/4"-1/2" Stepped HB 1/4"-1/2" Stepped HB
Outlet
1/4"-3/8" Stepped HB 1/4"-3/8" Stepped HB 1/4"-1/2" Stepped HB 1/4"-1/2" Stepped HB
Physical Properties Filtration Area
7 cm²  13.8 cm² 20 cm² 20 cm²
Bubble Point at 20°C ≥ 1.1 bar (16 psi) in 60% isopropanol (IPA) 40% water, air
Max. Operating Temperature@25°C
2.4 bar
(35 psi)		 2.4 bar
(35 psi)		 3.0 bar
(44 psi)		 4.2 bar
(61 psi)
Max. Differential Pressure (Forward) @25°C
2.4 bar
(35 psi)		 2.4 bar
(35 psi)		 3.0 bar
(44 psi)		 4.2 bar
(61 psi)
Max. Operating Temperature 50°C
Sterility Delivery Condition Non-sterile, can be autoclaved for 30 mins at 130 °C, 20 circles
(cannot be steam sterilized in-line)
Package Packaging Individually packaged in double PE Bags
Pack Size 10 pcs/pk
