Pharmaceutical PE Instrument Tee Pressure Gauge TC to Hose Barbs 1/pk

In stock
Part No. SFGSYYNN
$57.00 USD
Size
Sterilization
Package
Loading locations...
*Ships within 3 Business Days
*Customers are responsible for any import duties or taxes
*Read our Shipping Policy and Refund Policy
*Not for medical use

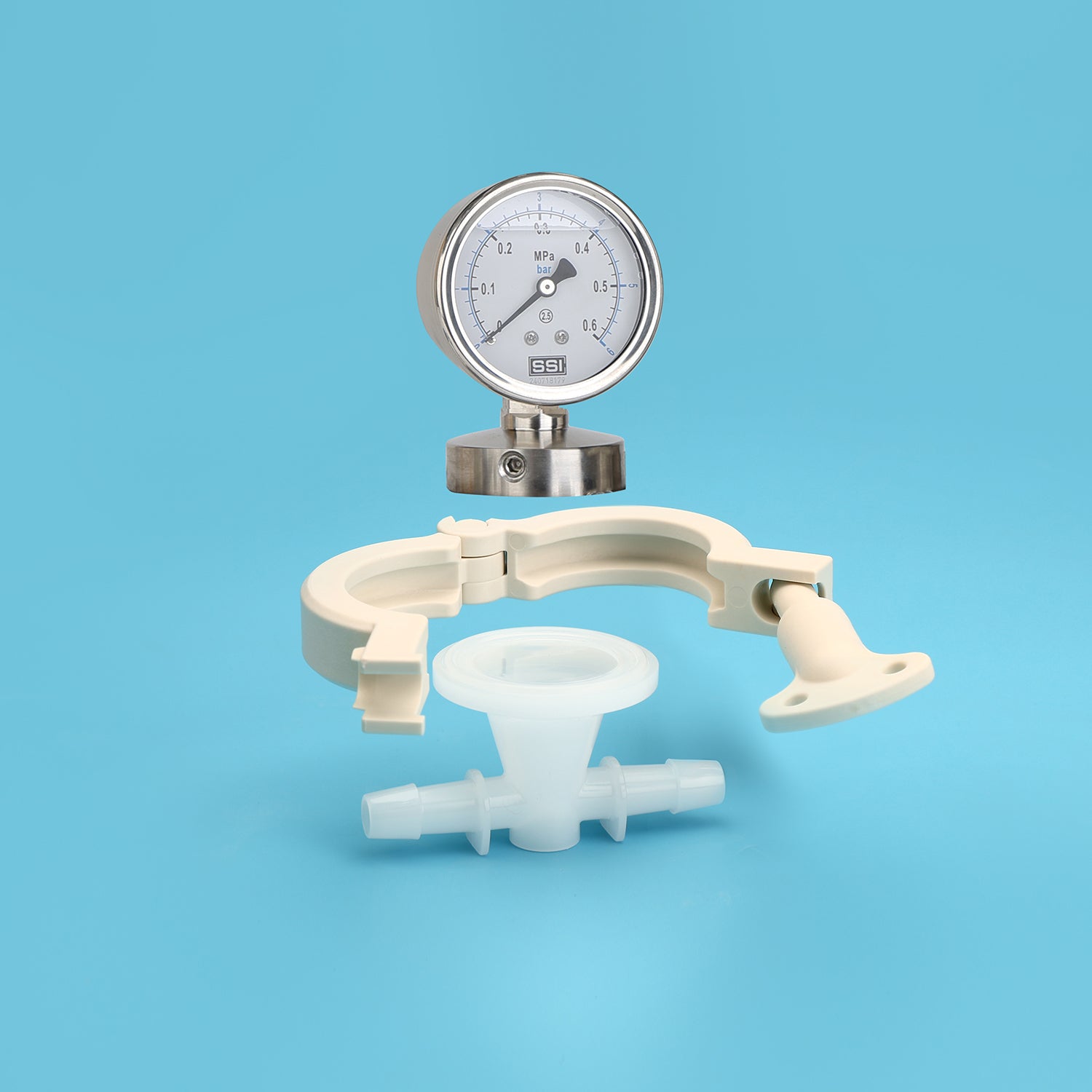

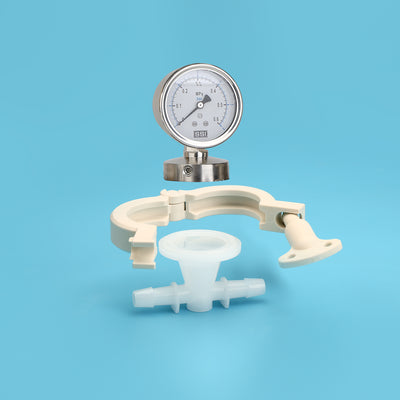

Cobetter Lifemeta™ SFG single-use instrument tee can be used in conjunction with existing stainless steel instruments. The tee design provides an integrated and unobstructed fluid path and has good sealing during testing. Additionally, during the sterilization process, there is no need to install pressure measuring instruments, reducing the risk of contamination.

Brand Accessory Brand Lifemeta™ SFG Single-Use Instrument Tee
Physical Properties Material Polyethylene (PE)
Biological Safety Bacterial Endotoxin <0.25 EU/ml
Sterilization Option Gamma-irradiation 25-45 kGy
Package Delivery Condition Non-sterile/Sterile Individually Packed
Pack Size 1/pk

* CANNOT Autoclave

Features

  • PE material, withstanding vacuum pressure of 0-0.55 MPa at room temperature
  • It does not require proprietary monitors or transmitters/line adjustments
  • No need to install instruments during sterilization
  • Can be used for pressure testing, fluid transfer, and filtration applications
  • It ensures sterile barrier properties, reducing the risk of material contamination

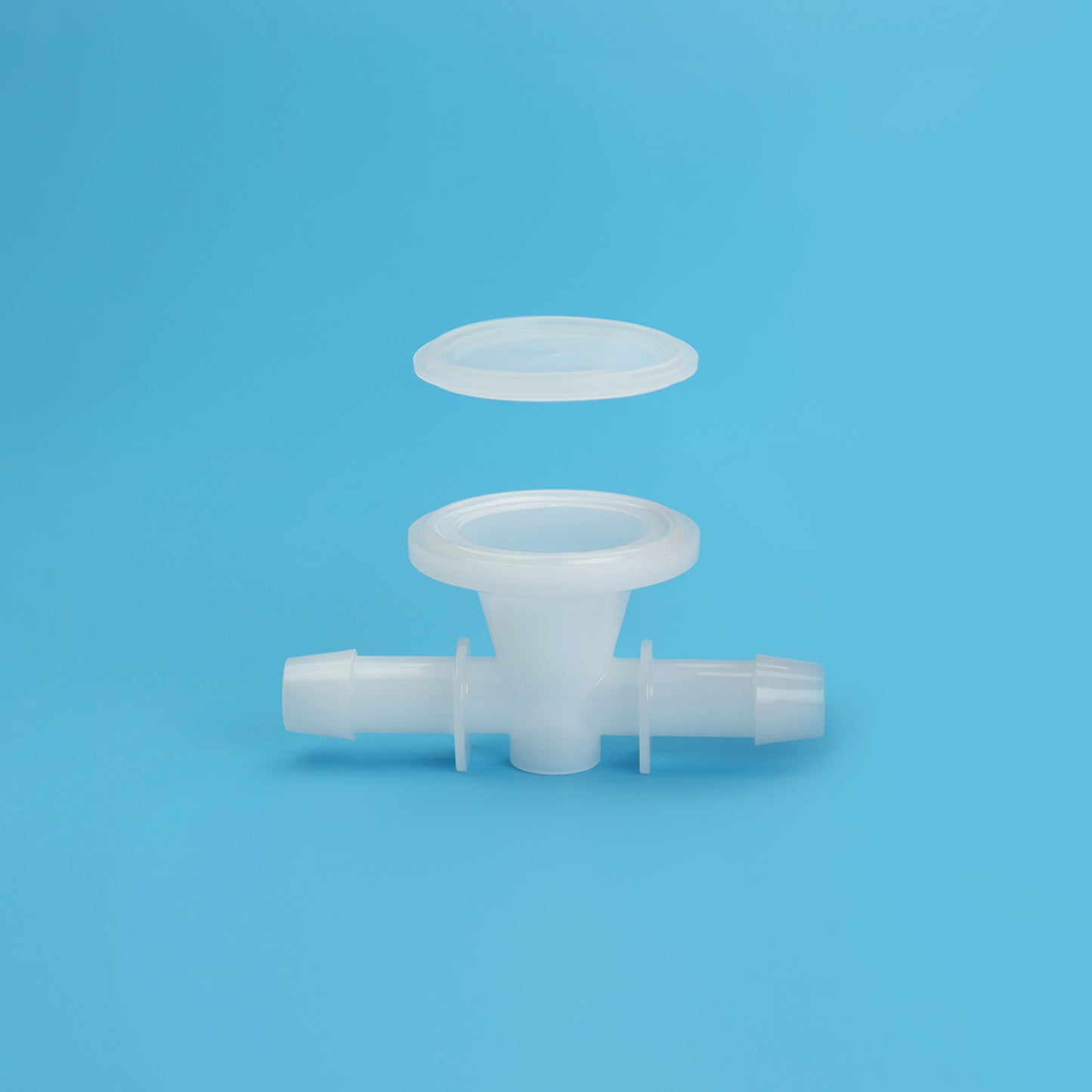

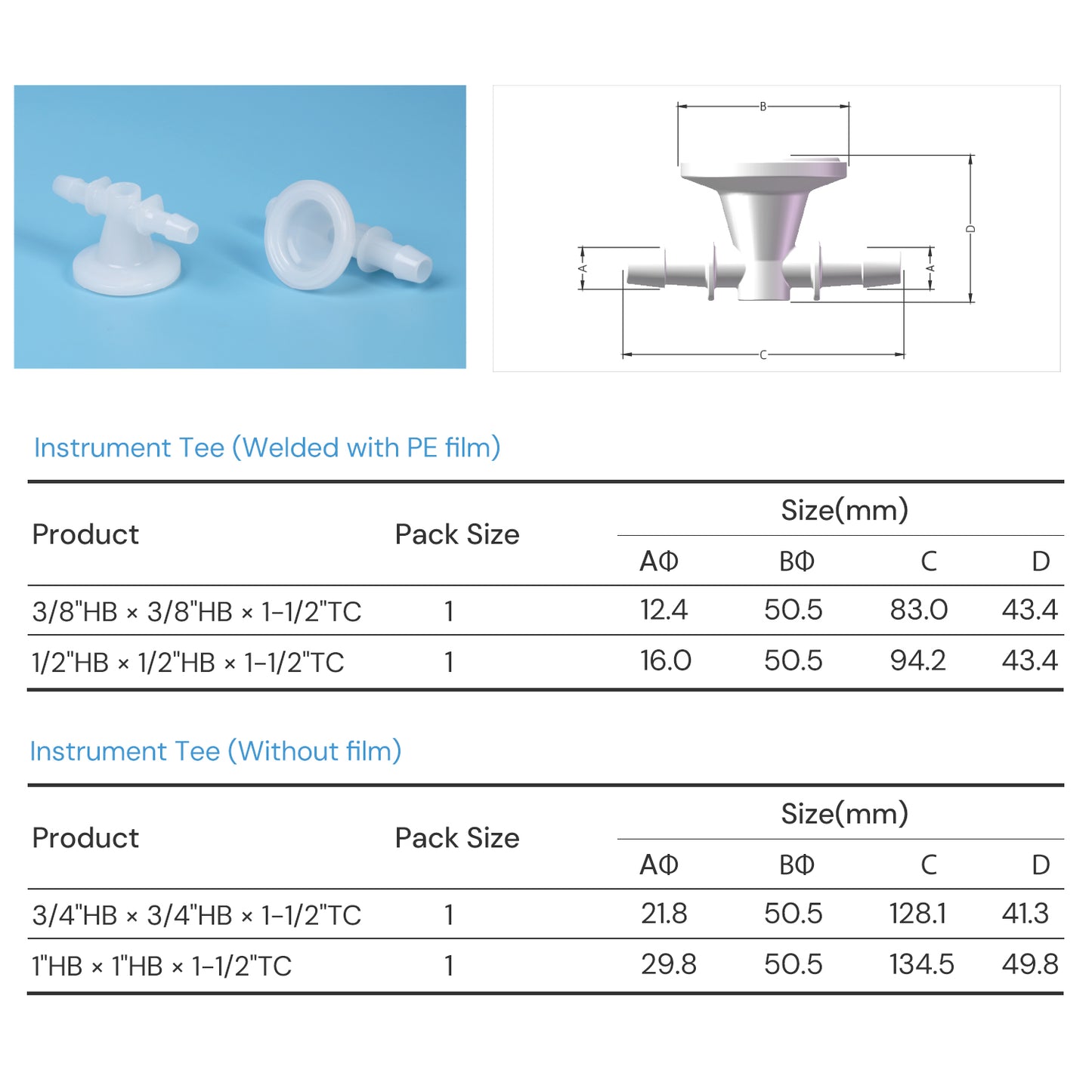

  • There are two structures: welded with PE film and without film

Applications

  • Centrifugal filtration
  • Down stream filtration
  • Chromatography
  • Depth filtration
  • Tangential flow filtration (TFF)/Cross-flow filtration(CFF)

Quality Assurance

  • ISO™ 9001:2015 Quality management system
  • ADCF raw materials, manufacturing in the ISO Class 7 clean zones
  • Resin raw material meets the requirement of USP <87> in Vitro Biological Reactivity Test
  • Resin raw material meets the requirement of USP <88> Biological Reactivity Test, in Vivo for Class VI plastics
  • Particulate matter in the product eluent meets the requirement in USP <788> for large volume parenterals

Q: The material of the film-coated tee pressure gauge？

The film-coated tee pressure gauge does not require a gasket and is made of HDPE+KA film. It cannot withstand steam sterilization.

Q: Will a single-use system that has been irradiated have any impact on the product? Can irradiation residues be detected in the irradiated items?

No. The irradiation dose is validated to ensure sterilization effectiveness. Moreover, the irradiation process only involves energy absorption and does not involve direct contact with the radiation source. Therefore, there are no issues of irradiation residues in the disposable system.

Q: The clamp does not tighten or fit. What should I do?

This may be due to the thickness of the TC connector. It is recommended to use Cobetter's clamp with Cobetter's TC flange.
  • Cobetter_Single-use_Accessories_Catalog_250617 Download
