Home » Fluid Management » Pharmaceutical ECS Easy Connectors Polysulfone PSF 10/pk
1/8‘’ HB ECS female connector
1/4‘’ HB ECS female connector
3/8‘’ HB ECS female connector
1-1/2'' TC ECS female connector
ECS female plug sealing cap
1/8'' HB ECS male connector
1/4'' HB ECS male connector
3/8'' HB ECS male connector
1-1/2'' TC ECS male connector
ECS male plug
1/8‘’ HB ECS female connector
1/4‘’ HB ECS female connector
3/8‘’ HB ECS female connector
1-1/2'' TC ECS female connector
ECS female plug sealing cap
1/8'' HB ECS male connector
1/4'' HB ECS male connector
3/8'' HB ECS male connector
1-1/2'' TC ECS male connector
ECS male plug

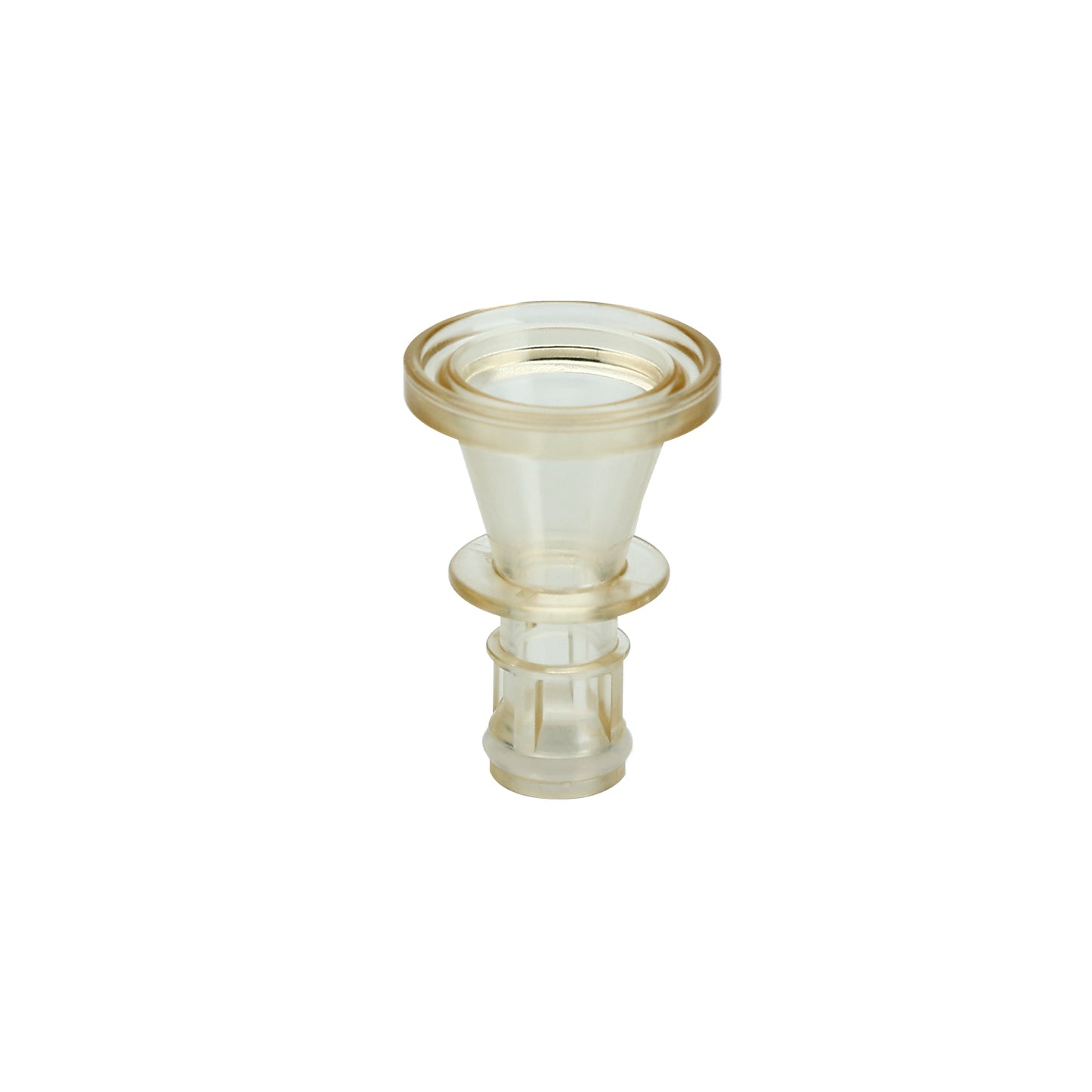

Pharmaceutical ECS Easy Connectors Polysulfone PSF 10/pk

In stock
Part No. ECSSFL1N
$36.00 USD
Type
Size
Package

Loading locations...
*Bulk Order? Request a Quote for Big Savings Now
*Ships within 3 Business Days
*Read our Shipping Policy and Refund Policy
*Not for medical use

Cobetter Lifemeta EC easy connector is mainly used for fluid transmission and has a variety of connector options. It can realize the function of quick connection and disconnection of tubings. When the male and female easy connectors are coupled, they can be rotated to avoid the problem of tubing distortion. Its swivel design reduces the risk of accidental disconnection.

Available in sterile packaging as well, please request a quote.

Specifications

Brand Accessory Brand Lifemeta™ EC Easy Connector
Materials Main Body Polysulfone(PSF)
O-ring Silicone
Thumb Latch PVDF
Physical Properties Temperature Range -80~132°C
Vacuum Resistance >0.09 MPa
Pressure Range 0~0.41 MPa
Retention Volume

1/8" HB: ~0.2 mL

1/4" HB: ~0.2 mL

3/8" HB: ~0.1 mL
Burst Strength

1/8" HB: 5.78~6.36 MPa

1/4" HB: 4.49~4.95 MPa

3/8" HB: 3.09~4.26 MPa
Biological Safety Bacterial Endotoxin <0.25 EU/ml
Sterilization Option Gamma-irradiation 25-45 kGy
Autoclave(132°C) 25 cycles, 60 mins
Package Delivery Condition Non-sterile
Pack Size 10/pk

Features

  • Suitable for fast and stable transmission of various fluids
  • Multiple specifications reduce the need for tubing diameter changes
  • Sterile connections can be achieved under Class A laminar flow
  • Can be applied to upstream low-risk production
  • Can be adapted to similar easy connectors on the market

Quality Assurance

  • ISO™ 9001:2015 Quality management system
  • ADCF raw materials
  • Meet the requirement of USP <87> in Vitro Biological Reactivity Test
  • Meet the requirement of USP < 88> Biological Reactivity Test, in Vivo for Class VI plastics
  • Aqueous extraction contains < 0.25 EU/mL as determined by Limulus Amebocyte Lysate(LAL), USP <85>
  • Particulate matter in the product eluent meets the requirement in USP <788> for large volume parenterals

Q: The material of the film-coated tee pressure gauge？

The film-coated tee pressure gauge does not require a gasket and is made of HDPE+KA film. It cannot withstand steam sterilization.

Q: Will a single-use system that has been irradiated have any impact on the product? Can irradiation residues be detected in the irradiated items?

No. The irradiation dose is validated to ensure sterilization effectiveness. Moreover, the irradiation process only involves energy absorption and does not involve direct contact with the radiation source. Therefore, there are no issues of irradiation residues in the disposable system.

Q: The clamp does not tighten or fit. What should I do?

This may be due to the thickness of the TC connector. It is recommended to use Cobetter's clamp with Cobetter's TC flange.
  • Cobetter_Single-use_Accessories_Catalog_250124 Download
