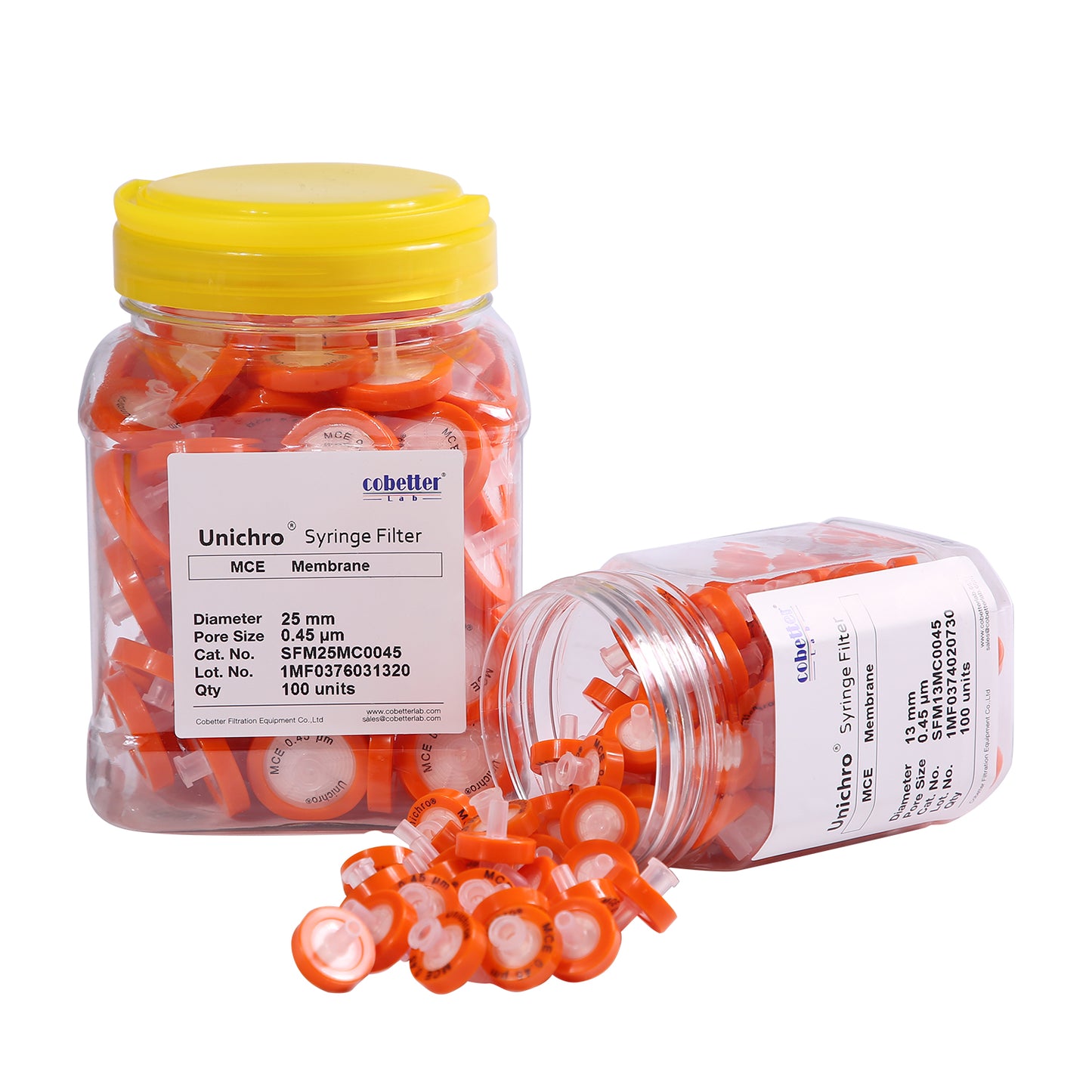

Orange Hydrophilic MCE Syringe Filters Non-sterile 100pcs/pk
Couldn't load pickup availability
*Read our Shipping Policy and Refund Policy
The membrane material of MCE syringe filter is mixed cellulose ester which is composed of cellulose acetate and nitrocellulose, and the surface is smoother and more uniform. Suitable for filtration of water-based solvents, not resistant to strong acid, strong alkali solutions, and most organic solvents. Ideal for aqueous sample filtration that needs higher flow rate and larger volume.
Specifications
| Connections | Inlet | Female Luer Lock | |||
| Outlet | Male Luer Slip | ||||
| Materials | Housing |
PP | |||
| Membrane | Mixed Cellulose Esters | ||||
| Wettability | Hydrophilic | ||||
| Physical Properties | Pore Size | 0.22 μm, 0.45 μm, 0.8 μm | |||
| Filter Diameter |
|
||||
| Filtration Area |
|
||||
| Maximum Operating Pressure |
|
||||
| pH Range | 4.0 – 8.0 | ||||
| Sterility | Delivery Condition | Nonsterile | |||
| Sterilization Method | Not Recommended | ||||
| Packagestrong> | Pack Size | 100pcs | |||
| Packaging | Bulk packed |
Performance
| Filter Diameter | Pore Size | Flow Rate (mL/min@0.21Mpa, 20°C, 210kPa, 30psi) |
Bubble Point (MPa, Water) |
| 13mm | 0.22μm | 64 | ≥0.3 |
| 0.45μm | 88 | ≥0.2 | |
| 0.8μm | 154 | ≥0.1 | |
| 25mm | 0.22μm | 208 | ≥0.3 |
| 0.45μm | 409 | ≥0.2 | |
| 0.8μm | 662 | ≥0.1 | |
| 33mm | 0.22μm | 338 | ≥0.3 |
| 0.45μm | 658 | ≥0.2 | |
| 0.8μm | 846 | ≥0.1 |
Features
- High porosity and large water flux
- Good interception effect
- Excellent biocompatibility
- High protein binding
- Cannot be used for protein extraction
Applications
- Sterilizing filtration of biological solutions
- Clarification or sterilization of aqueous solutions
- Particulate analysis and removal
- Air monitoring and microbial detection
- Tissue culture, biochemical analysis filtration
- Solvent filtration which used in HPLC
Select by Volume
| Sample Volume | Filter Diameter | Filtration Area | Hold-up Volume |
| 10mL | 13mm | 0.72 cm² | 25μl |
| 10mL to 100mL | 25mm | 3.4 cm² | < 100μl |
| 100mL to 200mL | 33mm | 4.5 cm² | < 125μl |
How to use a syringe filter?
Choose the right type of membrane material based on the properties of your sample. Be careful of the chemical compatibility to avoid extractables and leachables. Read this article about How to choose a syringe filter.
1. Load the sample into the syringe.
2. Attach the filter to the luer-lock of the syringe with a twisting motion. Make sure it is securely attached.
3. Filter the sample. Hold the syringe and filter vertically, and gently press the plunger to push the sample through the filter. Take care not to apply too much force or you may damage the filter.
4. Discard the used filter and repeat for the next sample.
- Chemical_Compatibility_Chart_for_Syringe_Filters Download
