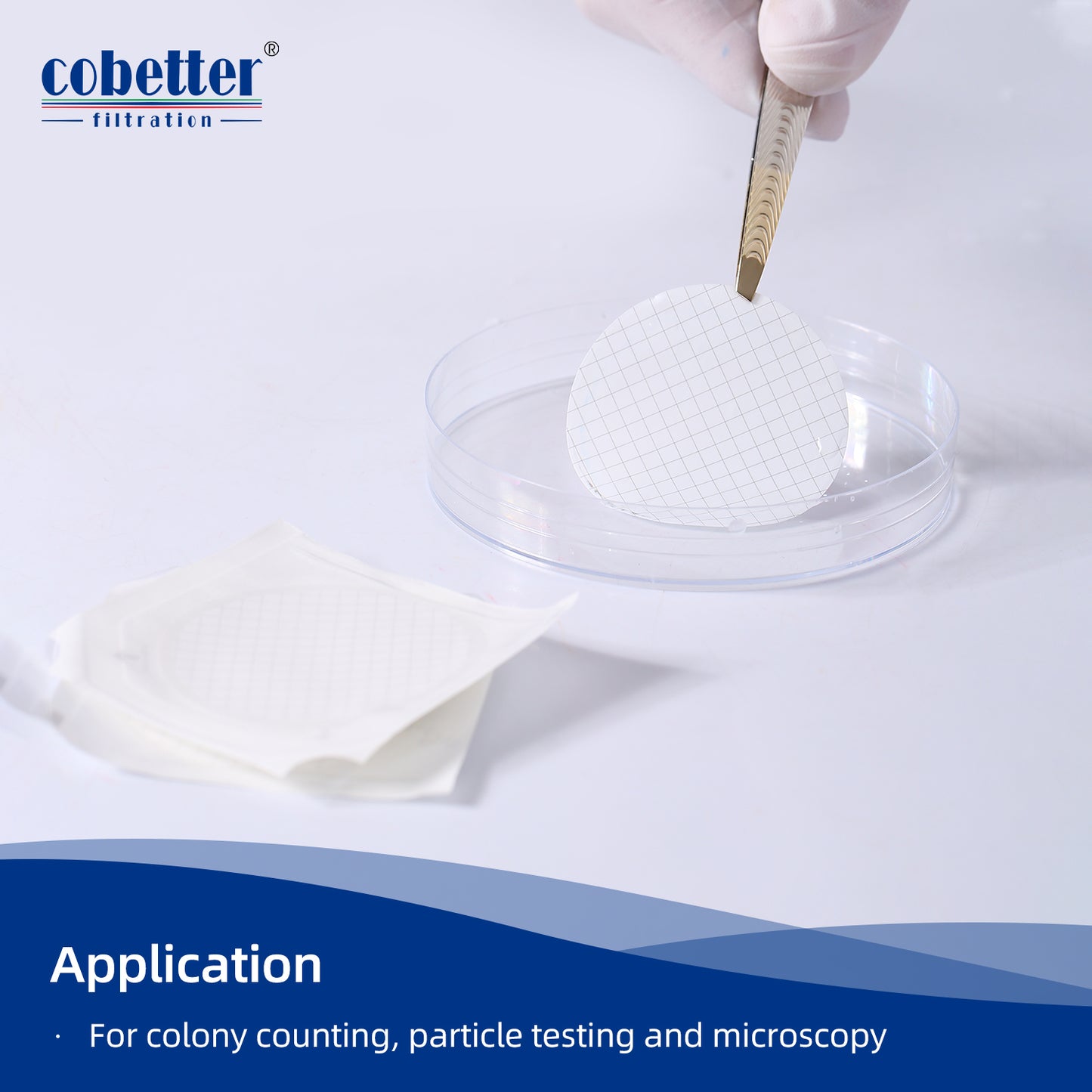

applications of gridded MCE membrane filter

Dispenser-Ready Sterile Gridded MCE Membrane Filter, Packed on a Pleated Band, 150/pk

In stock
Part No. MBWGM-2247SC
$48.00 USD
Diameter
Pore Size
Package
Loading locations...
*International Shipping within 10-12 Business Days
*Customers are responsible for any import duties or taxes
*Read our Shipping Policy and Refund Policy
*Not for medical use

Cobetter MCE gridded membrane filters are made of a mixture of nitrocellulose and cellulose acetate, which are one of the most widely used filters in analytical and research applications. They are available in 47mm diameter with 0.45μm or 0.22μm, white or black membrane with grid. The MCE gridded MCE membrane filters with smooth and flat surface feature easy counting of colonies and high bacterial recovery rate.

Features

  • High flow rate and flux
  • Sterile, individually packed for ready-to-use convenience
  • Surface grid facilitates colony identification and counting without inhibiting microbial growth
  • Excellent microbial retention efficiency and recovery rate
  • Dispenser-ready membrane filter is compatible with other lab dispensers

Applications

  • Bioburden testing and colony counting of pharmaceutical and cosmetic products
  • Bacterial analysis of water and beverages
  • White membrane for colored bacteria while black membrane for light, white or transparent bacteria
Physical Properties Filter Format Discs
Membrane Color White membrane with black grid
Diameter 47/ 50 mm
Pore Size 0.22/ 0.45 μm
Grid Interval 3 x 3mm
Thickness 130±50 μm
pH Range 4.0 – 8.0
Max. Thermal Resistance 130°C
Wettability Hydrophilic
Materials Membrane Mixed Cellulose Ester (MCE)
Sterility Delivery Condition Sterile
Sterilization Method Gamma Irradiation
Package Pack Size Pack of 150
Packaging Dispenser Ready
  • Cobetter_Microbiological_Testing_Products_Flyer_20260525 Download
  • Cobetter_Laboratory_Consumables__Catalog__20260509 Download
What pore sizes and specifications are available for Cobetter MCE gridded membrane filters?

Membrane material: MCE (Mixed Cellulose Ester)
Color: White membrane with black grid, black membrane with white grid
Pore size: 0.22, 0.45, 0.8, 1.2, 3.0, 5.0, 8.0μm
Diameter: 47mm, 50mm
Package: Individually packaged, 100/PK; Packaged on a Pleated Band, 150/PK
Sterile: by Gamma Irradiation 25-45kgy

Can Cobetter gridded membrane filters be autoclaved?

No. MCE grid membrane filters are primarily composed of nitrocellulose and cellulose acetate. At temperatures around 60–80°C, the membrane undergoes glass transition, and thermal decomposition may occur above 120°C. It is recommended to consider gamma irradiation sterilization instead.

What are the sterilization efficiency and microorganism recovery rate specifications for Cobetter gridded membrane filters?

Cobetter gridded membrane filters demonstrate a sterilization efficiency of LRV > 7 and a microorganism recovery rate of ≥ 80%.

What's the grid interval of the gridded membrane filters?

Grid interval: 3.1 x 3.1mm.

What's the maximum temperature tolerance of gridded membrane filters?

The maximum temperature tolerance is 130 °C.

What are the features and advantages of Cobetter MCE gridded membrane filters?
  • Uniform microporous structure that supports consistent, high flow rates.
  • High microorganism recovery and high particulate (dirt) loading capacity.
  • Free of surfactants, minimizing the risk of sample interference or contamination.
  • Clearly and uniformly printed grid, enabling reliable particle observation and accurate enumeration of microorganisms and colonies; the grid material is non-toxic and non-inhibitory to microbial growth, ensuring sample integrity and compliance with microbiological testing requirements.
