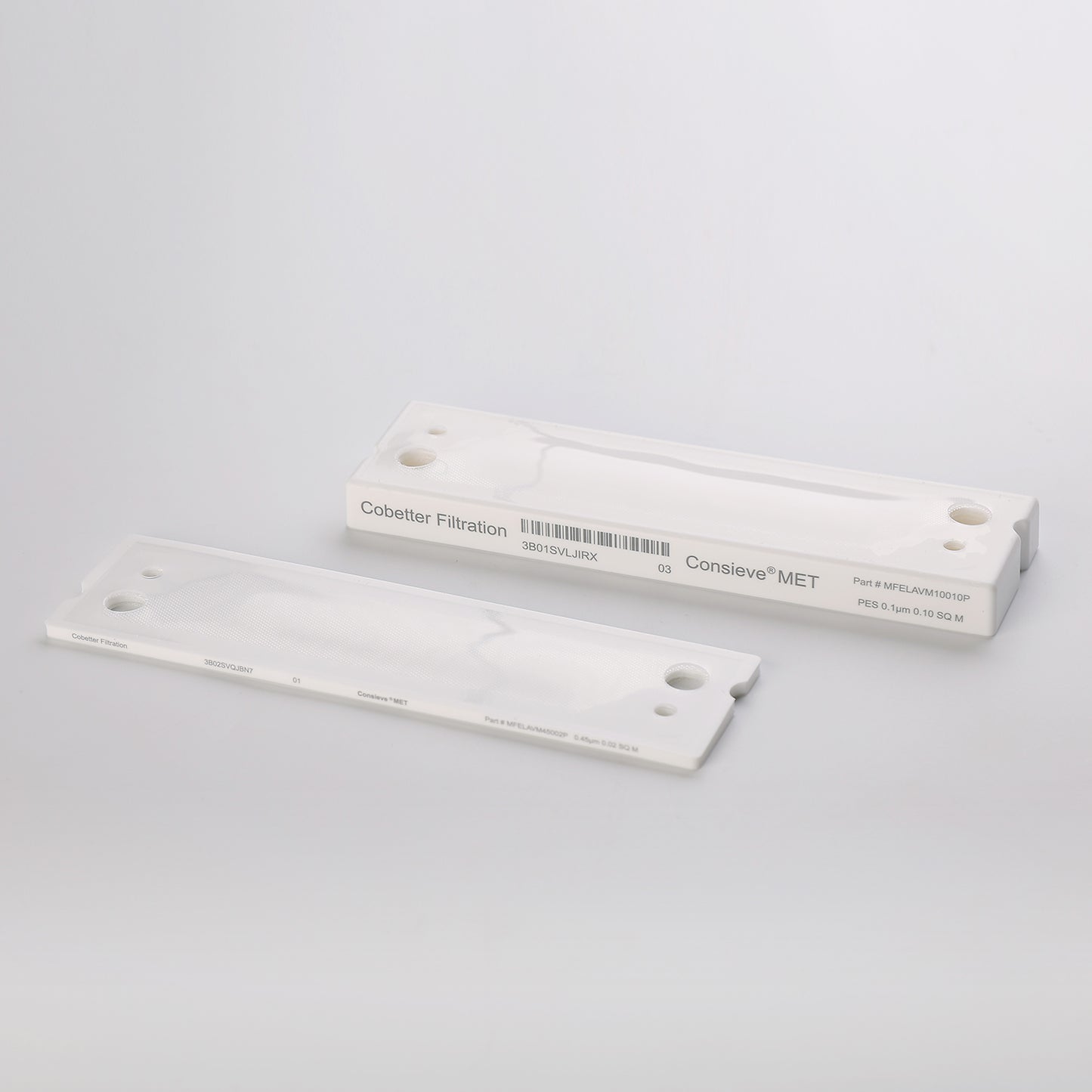

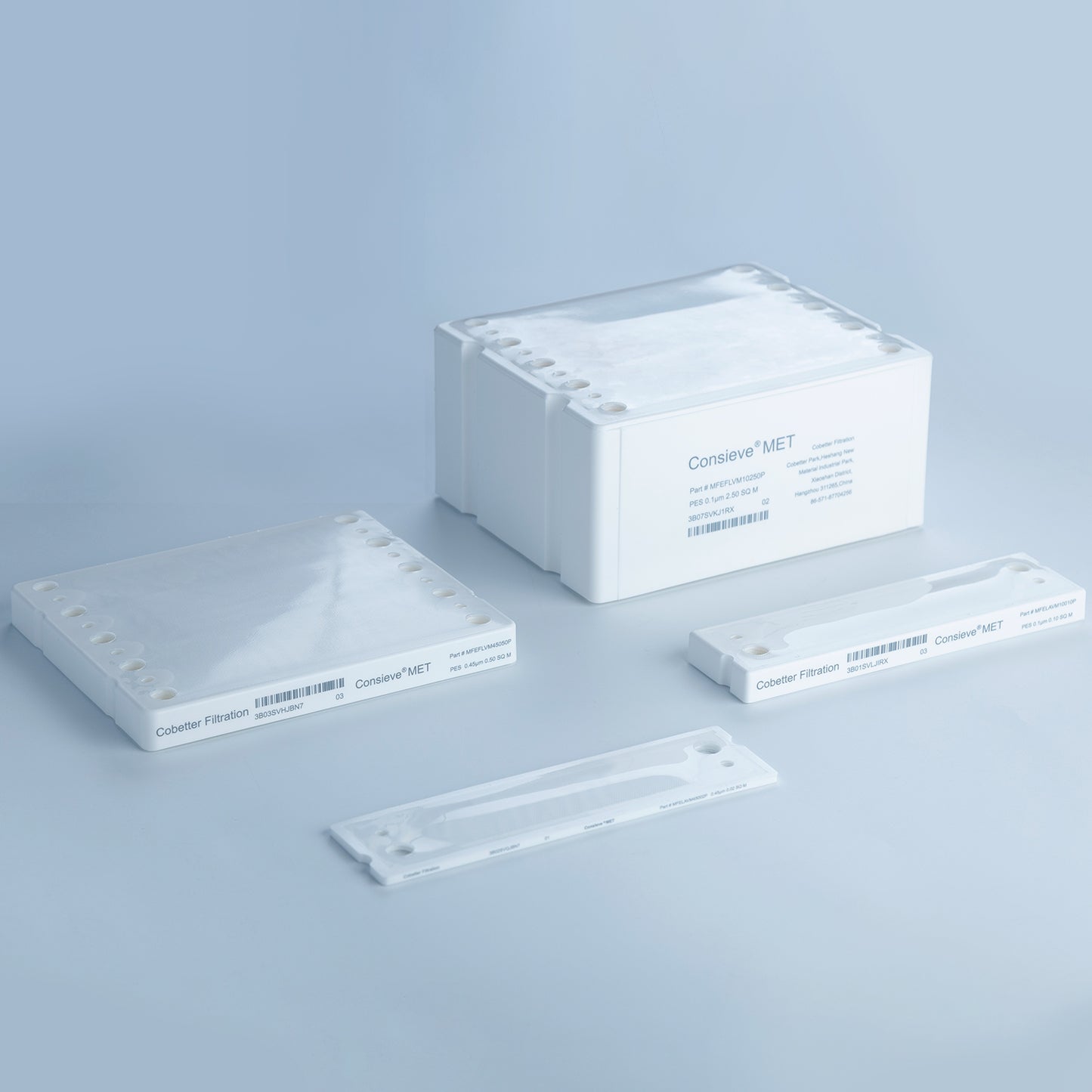

Tangential Flow Filtration Cassette PVDF Microfiltration Membrane Lab, 1/pk
Couldn't load pickup availability
*Read our Shipping Policy and Refund Policy
Consieve MET microfiltration TFF cassettes are often used in the clarification process of the supernatant after centrifugation of fermentation broth or lysate. It has the characteristics of high process throughput, large filtration loading capacity, good clarification effect, and easy cleaning. The relatively open suspended flow channel is compatible with filter fluids with a certain solid content and higher viscosity.
The cassettes should be used with Cobetter Cassette Stainless Steel Holder:
EFA 0.02m² cassettes use with Ultrafiltration Cassette Holders (0.01m²)
EFA 0.1m² cassettes use with Ultrafiltration Cassette Holders (0.11m²)
EFA 0.5m²or 2.5m²cassettes use with Ultrafiltration Cassette Holders (0.5m²)
Specifications
| Materials | Membrane material | PVDF | ||
| Screen | PP | |||
| Gasket | Silicone | |||
| Sealant | Silicone | |||
| Physical Properties | Pore Size | 0.1/0.2/0.45/0.65 μm | ||
| Effective Filtration Area |
|
|||
| Throughput |
|
|||
| Operating Conditions | pH Range | 2-11 | ||
| Max. Operating Temperature | 50°C | |||
| Max. Operating Pressure | 4.0 bar | |||
| Integrity | 100% integrity test | |||
| Tangential Flow Rate | 100% tangential flow rate testing | |||
| Sterility | Delivery Condition |
Nonsterile | ||
| Package | Pack Size | 1pcs | ||
| Packaging | Individually packed in PE bag |
Features
- Very hydrophilic
- High throughput
- High loading capacity
- Good anti-pollution ability
Applications
- Clarification process of the supernatant after centrifugation of fermentation broth or lysate
- COBETTER_Consieve_TFF_Cassettes_and_Systems_20240927 Download
