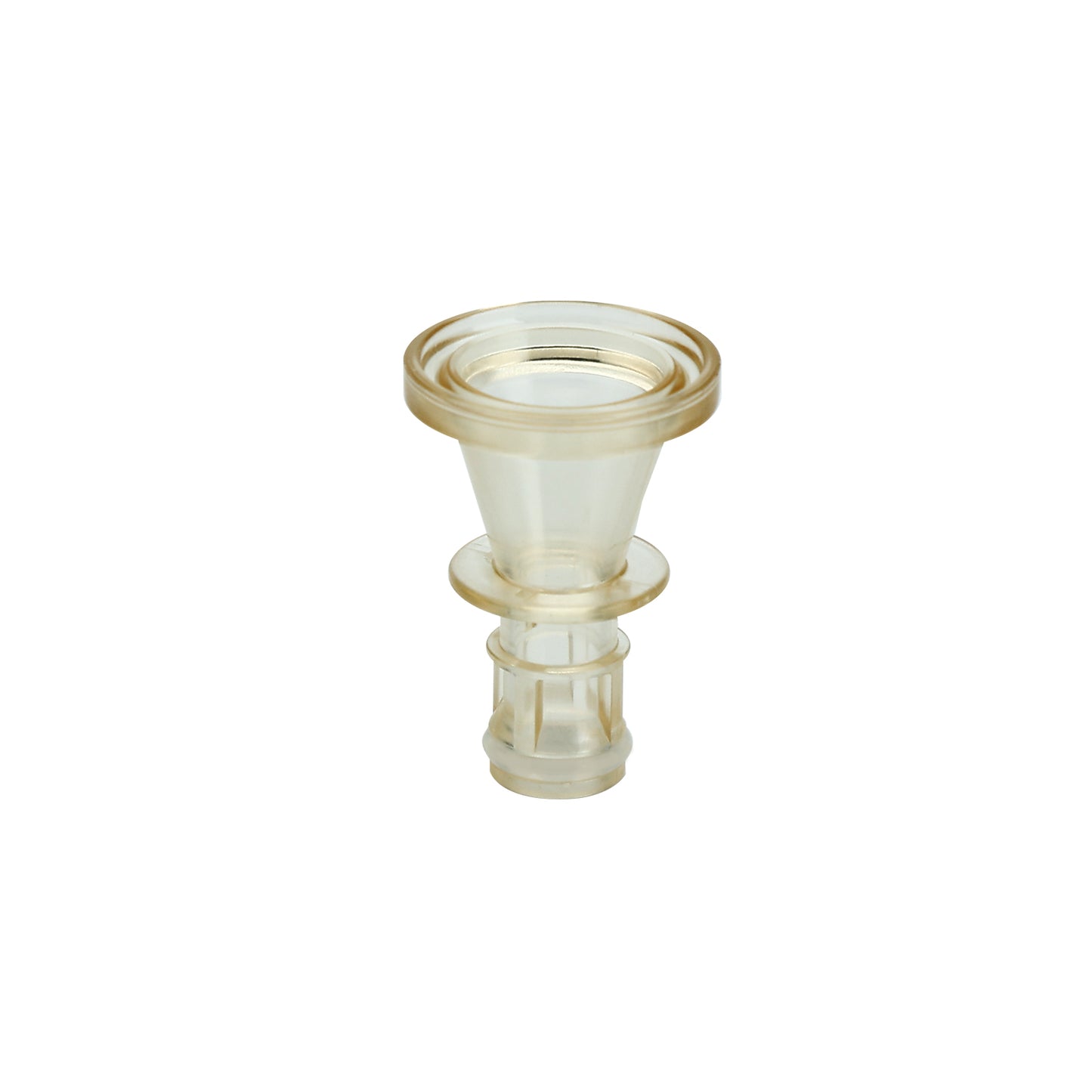

Lifemeta™ ECS Single-Use Quick Connectors Coupling Body and Sealing Cap Pack of 10

In stock
Part No. ECSSFL1N
$29.00 USD
Size
Sterility
Package
Loading locations...
*Ships Out within 3 Business Days
*Customers are responsible for any import duties or taxes
*Read our Shipping Policy and Refund Policy
*Not for medical use

Cobetter Lifemeta EC quick connector is mainly used for fluid transmission and has a variety of connector options. It can realize the function of quick connection and disconnection of tubings. When the male and female quick connectors are coupled, they can be rotated to avoid the problem of tubing distortion. Its swivel design reduces the risk of accidental disconnection.

Available in sterile packaging as well, please request a quote.

Features

  • Suitable for fast and stable transmission of various fluids
  • Multiple specifications reduce the need for tubing diameter changes
  • Sterile connections can be achieved under Class A laminar flow
  • Can be applied to upstream low-risk production
  • Can be adapted to similar easy connectors on the market

Quality Standards

  • ISO 9001: 2015 Quality Management System
  • ISO 7 cleanroom production
  • Manufactured for use in conformance with cGMP
  • Each product is integrity tested prior to release
  • COA/COQ provided with shipment
  • Validation documents are available upon request
  • TSE/BSE certificate available
Physical Properties Product Name Lifemeta™ EC Quick Connector
Barb Size & Flange Size 1/8" HB, 1/4" HB, 3/8" HB, 3/4" TC, 1-1/2" TC, and Plug
Temperature Range -80 ~ 132°C
Vacuum Resistance >0.09 MPa
Pressure Range 0~0.41 MPa
Retention Volume 1/8" HB: ~0.2 mL
1/4" HB: ~0.2 mL
3/8" HB: ~0.1 mL
Burst Strength 1/8" HB: 5.78~6.36 MPa
1/4" HB: 4.49~4.95 MPa
3/8" HB: 3.09~4.26 MPa
Materials Main Body Polysulfone (PSF)
O-ring Silicone
Thumb Latch PVDF
Regulatory Compliance Compliance USP <788> Particulate Matter
USP <87> Cytotoxicity
USP <88> Biological Reactivity
FDA Indirect Food Additives, 21 CFR 177-182
ADCF Materials
Bacterial Endotoxin Endotoxin Limit of WFI System<0.25 EU/mL with the Limulus Amebocyte Lysate (LAL), USP <85>
Sterility Sterilization Method Non-sterile: can be autoclaved 25 cycles for 60 minutes at 132°C

Sterile: by Gamma irradiation at 25–45 kGy
Package Pack Size Pack of 10
Packaging Non-sterile: Bulk packed in double PE bag

Sterile: Individually packed in PE bag


  • Cobetter_Single-use_Accessories_Catalog_20260408 Download
What is the difference between ECS and ECM quick connectors?

The main difference between ECS and ECM quick connector lies in the size of the HB connector.

ECS quick connectors: 1/8" HB, for the connection of 1/8" ID x 1/4" OD tubing; 1/4" HB, for the connection of 1/4" ID x 7/16" OD tubing; 3/8" HB, for the connection of 3/8" ID x 5/8" OD tubing.

ECM connector: 1/2" HB, for the oonnection of 1/2" ID x 3/4" OD tubing.
