Lifemeta™ AC Single-Use Aseptic Connector - Gamma Version, Pack of 10

In stock
Part No. ACMSSR
Size
Package
Loading locations...
*Not for medical use
*Ships Out within 6-14 Business Days
*Customers are responsible for any import duties or taxes
*Read our Shipping Policy and Refund Policy
*Not for medical use

Cobetter Single-use Aseptic Connectors are used for quick sterile connections. The easy-to-use Lifemeta AC aseptic connectors are designed with pull tabs to improve ease of operation, while the genderless structure makes the connection more flexible and reduces the risk of upstream and downstream connection mismatches and operational errors.

Features

  • Genderless structure makes the connection more flexible
  • Broad chemical compatibility
  • Easy to use, three steps connection process

Applications

  • Media, buffer preparation and transfer
  • Sampling during cell culture
  • Sterile assembly of probe assemblies into single-use bags
  • Final filling sterile connection
  • Sterile filling of bulk drug substance

Quality Standards

  • ISO 9001: 2015 Quality Management System
  • Manufactured for use in conformance with cGMP
  • Each product is integrity tested prior to release
  • COA/COQ provided with shipment
  • Validation documents are available upon request
  • TSE/BSE certificate available
Physical Properties Product Name Lifemeta™ AC Aseptic Connector

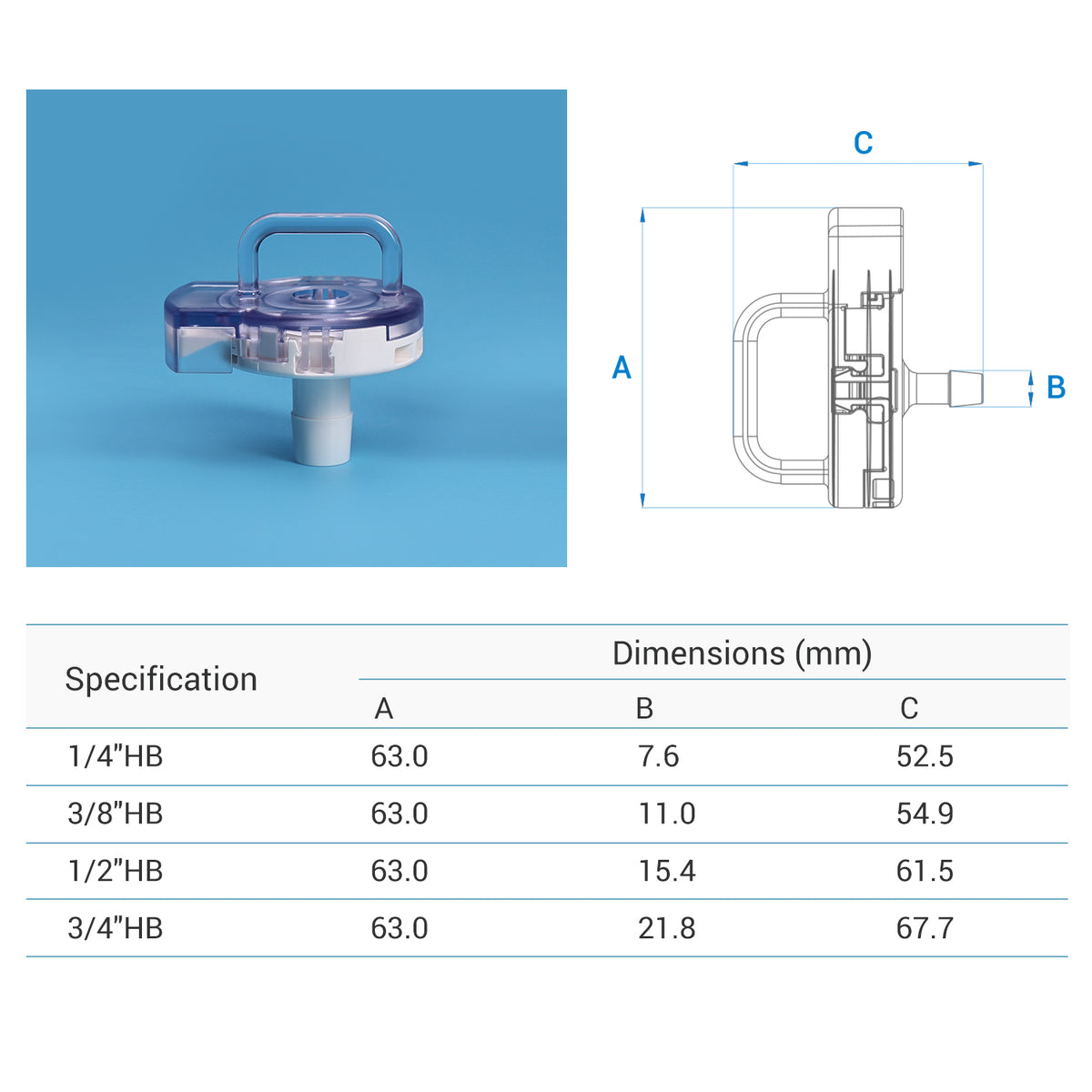

Barb Size / Tubing ID 1/4" HB, 3/8" HB, 1/2" HB, 3/4" HB
Operating Temperature -80°C to 130°C
Operating Pressure 0 - 3.0 bar
Vacuum Resistance Up to 1.0 bar
pH Range 2.0 - 12.0
Materials Main Components Polysulfone (PSF)
Membrane Material Polyethersulfone (PES)
O-ring Silicone Rubber
Protective Caps Polypropylene (PP)
Regulatory Compliance Compliance USP <788> Particulate Matter
USP <87> Cytotoxicity
USP <88> Biological Reactivity
FDA Indirect Food Additives, 21 CFR 177-182
ADCF Materials
Bacterial Endotoxin Endotoxin Limit of WFI System<0.25 EU/mL with the Limulus Amebocyte Lysate (LAL), USP <85>
Sterility Sterilization Method Gamma Version: for gamma irradiation applications

can be sterilized by Gamma irradiation at 25–45 kGy
Delivery Condition Non-sterile
Package Pack Size Pack of 10
Packaging Individually packed in PE bag



Operation


  • Lifemeta_AC_Single-use_Aseptic_Connector_20260409 Download
What are the usage conditions for aseptic connectors/disconnectors?

1. Aseptic connection / disconnection of the flow path can be achieved in a Class C or Class D ordinary environment

2. pH tolerance range: 2-12

3. Temperature tolerance range: -80°C to 130°C

What are the applications of aseptic connectors?

Aseptic connectors play a critical role throughout the entire bio-pharmaceutical manufacturing process, from raw material handling to final filling. Typical applications include:

1. Media preparation/transmission
2. Buffer preparation/transmission
3. Sampling of cell culture media
4. Aseptic connections for preparation filling

What are the advantages of aseptic connectors compared to other connection methods?

1. Genderless Design: The Lifemeta AC aseptic connector features a unisex structure for flexible connections, reducing risks of mismatched fittings and operational errors.

2. The aseptic connector has undergone rigorous aseptic barrier verification, ensuring aseptic connection of two independent flow paths even in class C or class D ordinary environments, thus safeguarding the high-quality production of products in the pharmaceutical industry.

3. Compared with using TPE tubing, aseptic connectors do not require auxiliary equipment (aseptic tubing welding and sealing machines), making it more convenient.

How to use aseptic connectors?

Firstly, remove protective covers from both aseptic connectors. Align and connect initially until an audible "click" is heard. Then firmly pull out both separator films. Press connectors fully to complete the secure sterile junction. To ensure sterility, please use the aseptic connector correctly according to the “Aseptic Connector User Manual”.

What is the sterilization method for aseptic connector?

It can be sterilized by 25-45 kGy gamma irradiation or by autoclaving at 130℃ for 60 minutes.
