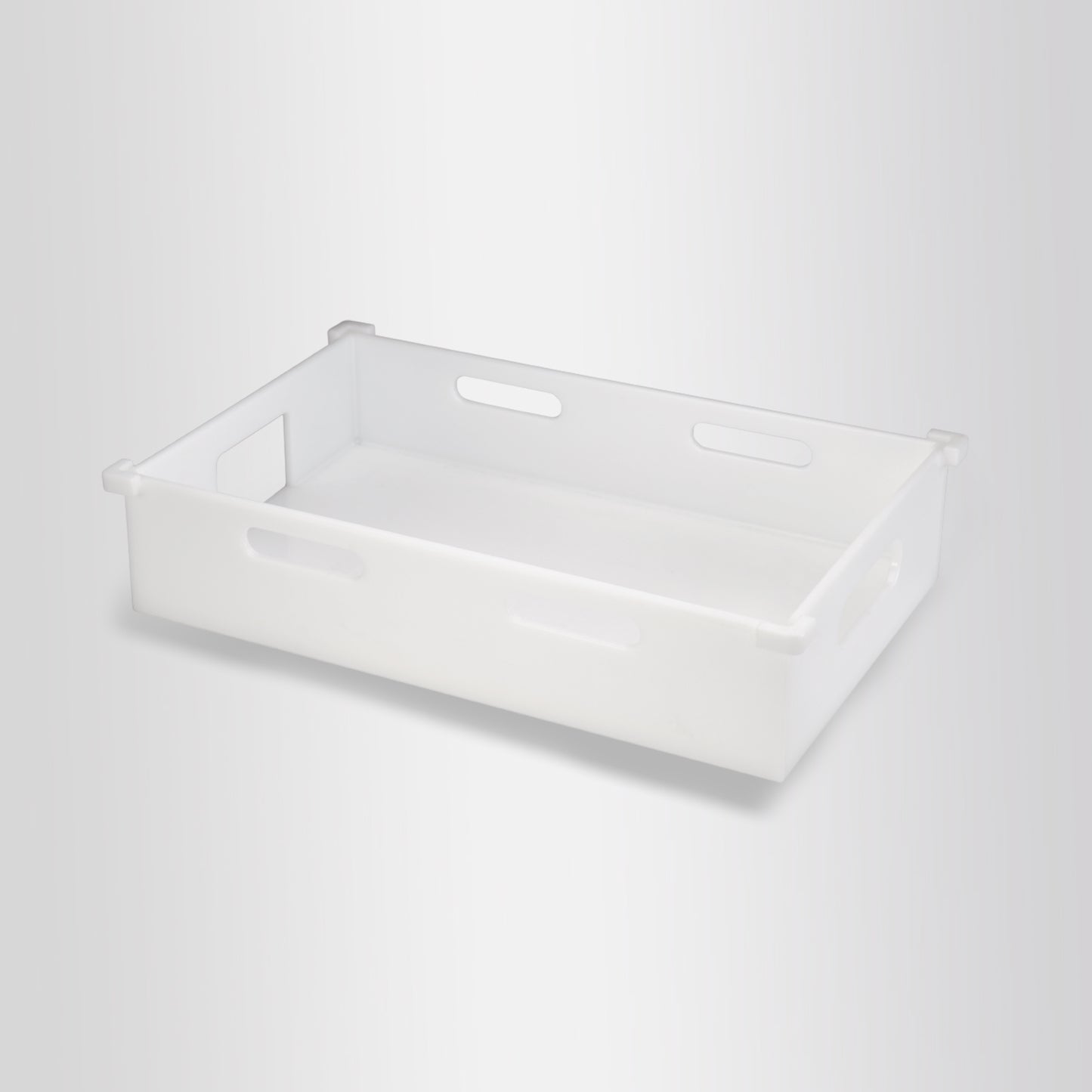

Lifecube™ FTT Freezer Trays

In stock
Part No. FTT10LA
$149.00 USD
Volume
Package
Loading locations...
*Ships Out within 5-7 Business Days
*Customers are responsible for any import duties or taxes
*Read our Shipping Policy and Refund Policy
*Not for medical use

Lifecube FTT meets the needs for high efficiency, sterility and stability of freezing operations in the biopharmaceutical industry. Lifecube FTT is available with three different freeze-thaw solutions, allowing customers to choose the one that best suits their needs.

Features

  • Single-use bags are placed in freezer trays to ease handling
  • Three units can be stacked to increase cold storage utilisation
  • Reduces bag impact during handling

Validation of performance

  • Transport Testing
  • Stacking Test
  • Drop Test
  • -80°C Freezing Test
Physical Properties Product Name Lifecube™ FTT Freezer Trays
Max. Working Volume Nominal Volume 10L: 8 L
Nominal Volume 20L: 16 L
Nominal Volume 50L: 40 L
Operating Temperature -80 to 40 °C
Materials Main Body HDPE
Dimentions 10 L LxWxH: 708 * 458 * 155 mm
20 L LxWxH: 860 * 580 * 155 mm
50 L LxWxH: 1060 * 660 * 155 mm
Regulatory Compliance Compliance USP <788> Particulate Matter
USP <87> Cytotoxicity
USP <88> Biological Reactivity
FDA Indirect Food Additives, 21 CFR 177-182
ADCF Materials
Bacterial Endotoxin Endotoxin Limit of WFI System<0.25 EU/mL with the Limulus Amebocyte Lysate (LAL), USP <85>
Sterility Delivery Condition Non-sterile
Package Pack Size Pack of 1
Packaging Individually packed in double PE bag


  • Cobetter_Lifecube_FTT_Containers_Flexible_Freeze-Thaw_Series-202603 Download
What are the fetures and application conditions of Cobetter single-use freeze-thaw bags?

1. Cobetter Single-use freeze-thaw bags are widely used in the bio-pharmaceutical industry, especially in the production and storage of biological macromolecule drugs such as vaccines, blood products, antibody drugs and recombinant therapeutic proteins. These bags can ensure the stability and safety of the medicine during the freezing and thawing process.

2. Temperature range: -80°C to 40°C

What are the features and application conditions of Cobetter FDT Single-use Freezing Trays?

1. Cobetter Lifecube FDT Single-use Freezing Trays are mainly used for batch or single freeze-drying process. The freezing tray is a completely sealed container formed by the effective combination of PP frame and e-PTFE film. It incorporate a high moisture vapor transmission rate e-PTFE film to effectively store and protect the active pharmaceutical ingredients during the freeze-drying process, and reduce the risk of product fly-out or ejection during lyophilization.

2. Temperature Range: -80°C to 125°C

3. Sterilization Method: Gamma irradiation at 17–25 kGy

What is the difference in material between the freeze-thaw bags and the liquid storage/mixing bags?

Cobetter Lifecube single-use freeze-thaw bags utilize Topeva SA multilayer coextruded film, distinguished by its ethylene vinyl acetate (EVA) liquid-contact layer, making it has excellent flexing resistance and exceptional low temperature performance.
