Lifecube™ FDT Single-use Freezing Trays

In stock
Part No. FDT-PF0500
$157.00 USD
Size
Package
Loading locations...
*Ships Out within 5-7 Business Days
*Customers are responsible for any import duties or taxes
*Read our Shipping Policy and Refund Policy
*Not for medical use

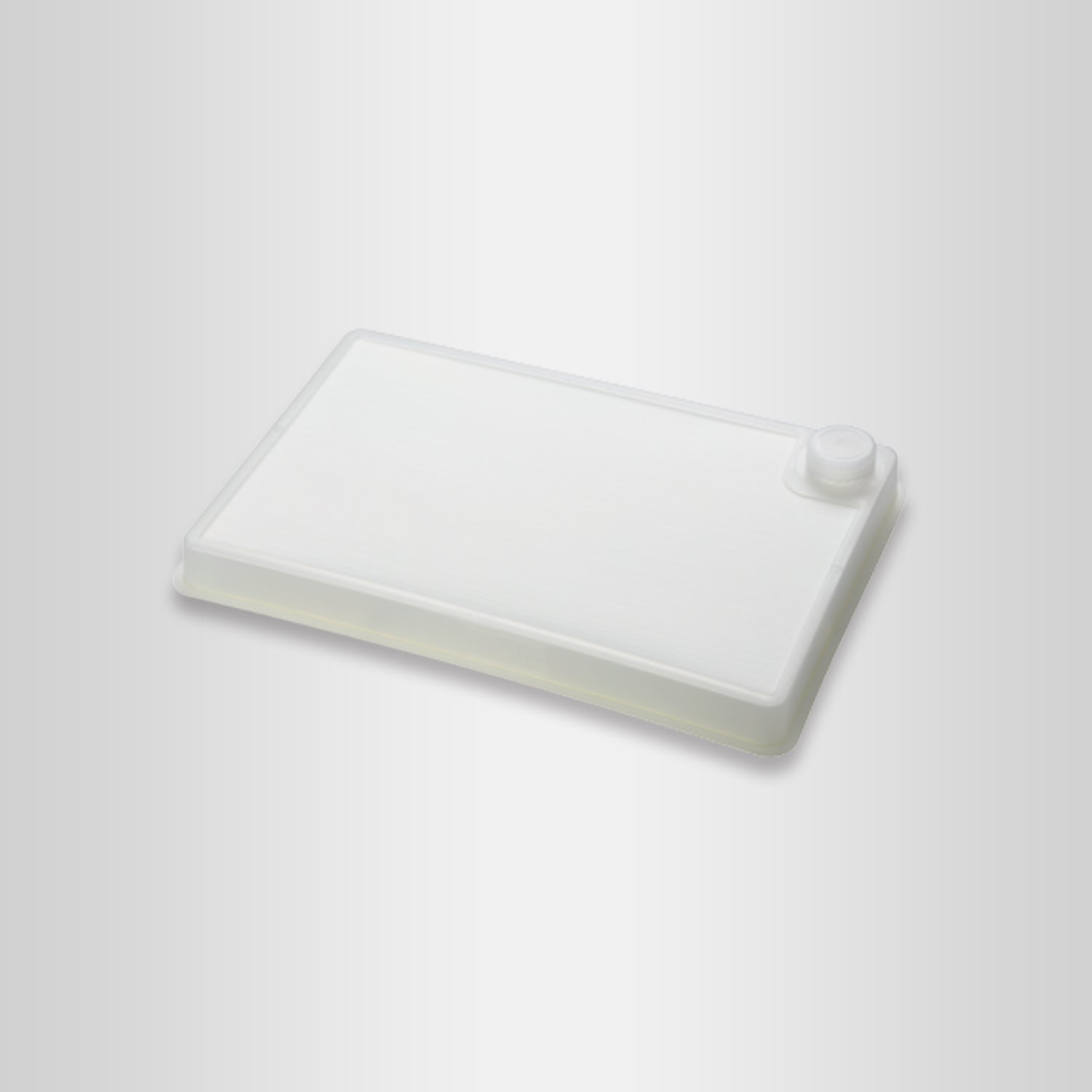

Cobetter Lifecube FDT Single-use Freezing Trays are mainly used for batch or single freeze-drying process. The freezing tray is a completely sealed container formed by the effective combination of PP frame and e-PTFE membrane. It incorporate a high moisture vapor transmission rate e-PTFE Membrane to effectively store and protect the active pharmaceutical ingredients during the freeze-drying process, and reduce the risk of product fly-out or ejection during lyophilization.

Specifications

Material Main Body: Polypropylene
Membrane: e-PTFE
Volume 200-1800 mL
Temperature Range -80 to 125 °C
Package Double-layer package
Sterilization Can be gamma irradiated in sterile package

Advantages

  • Avoid the cleaning process of freeze dryers and traditional trays, decrease cost and reduce labor
  • Reduce the risk of product fly-out or ejection during lyophilization
  • Sterile sealed container, reduce the risk of drug contamination
  • Compatible with most freeze-drying processes and equipments

Environment Management

  • The entire manufacturing process of FDT single-use freezing trays from raw material storage to product packaging is completed in the ISO Class 4.8 clean zones, which ensures the cleanliness of the product and prevents pollution
  • All the products are manufactured and inspected under a strict quality system that complies with cGMP
  • The products are 100% inspected by optical visual to check the visible contaminants and process defects
  • Cobetter_Lifecube_FDT_Single-use_Freezing_Trays_250523 Download

Q: What are the fetures and application conditions of Cobetter single-use freeze-thaw bags?

1. Cobetter Single-use freeze-thaw bags are widely used in the bio-pharmaceutical industry, especially in the production and storage of biological macromolecule drugs such as vaccines, blood products, antibody drugs and recombinant therapeutic proteins. These bags can ensure the stability and safety of the medicine during the freezing and thawing process.
2. Temperature range: -80℃ to 40℃

Q: What are the features and application conditions of Cobetter FDT Single-use Freezing Trays?

1. Cobetter Lifecube FDT Single-use Freezing Trays are mainly used for batch or single freeze-drying process. The freezing tray is a completely sealed container formed by the effective combination of PP frame and e-PTFE film. It incorporate a high moisture vapor transmission rate e-PTFE film to effectively store and protect the active pharmaceutical ingredients during the freeze-drying process, and reduce the risk of product fly-out or ejection during lyophilization.
2. Temperature Range: -80°C

Q: What is the difference in material between the freeze-thaw bags and the liquid storage/mixing bags?

Cobetter Lifecube single-use freeze-thaw bags utilize Topeva SA multilayer coextruded film, distinguished by its ethylene vinyl acetate (EVA) liquid-contact layer, making it has excellent flexing resistance and exceptional low temperature performance.
